Exhaust Risers

Description

Particularly when the inboard marine engine is close to the waterline, it is often necessary to include the so-called “exhaust riser”, a component connected directly to the exhaust manifold. Normally the riser has an external over-wrap where the water that surrounds the exhaust gas pipe circulates, guaranteeing the cooling of the entire circumference of the pipe itself. The exhaust riser of a marine engine aims to guartantee the collection, the mixing and the engine cooling water and fuel gas expulsion.

Exhaust manifolds and risers are therefore essential components for the correct operation of the direct or indirect cooling system of the inboard marine engine.

For all the most common inboard marine engines – Volvo Penta, Yanmar, Iveco Aifo, Mercury Mercuiser just to name a few – SAITO, through its commercial partner SAILOG, sells exhaust manifolds and risers, pipe elbows, bends, dual chamber exhausts and heating exchangers all of them made of stainless steel for deep padding laser cut with cad / cam technology, a material that opposes very well the corrosion necessary for salt air in the form of salt water vapor. We are also able to reconstruct components damaged by saltiness, please contact us info@sailog.eu for further informations.


NEW! – Custom Cast Stainless Steel Exhaust Riser

The range of “generic/universal” risers complements the one developed for specific marine engines such as Volvo Penta, Yanmar, VM, and Volkswagen Marine. These “generic mixer” are versatile and suitable for various applications, from small engines to large generators/power units from Iveco FPT, Perkins, Kohler, Lombardini, Deutz, Yanmar, Volvo Penta, Cummins, Caterpillar (CAT), MTU, Scania, Mitsubishi Heavy Industries, Doosan, Baudouin, Onan, Fischer Panda, Mase. Available in various sizes, with inlet/outlet pipe diameters from 50/76 mm to 127/152 mm, they include adapter flanges and v-clamps for easier installation. Made of 316 stainless steel, they provide greater safety and durability compared to cast iron or welded steel versions.

CODE	IMAGE	INLET	OUTLET	H2O INLET NPT THREADED HOLE
SMMG23		2″ / 50mm	3″ / 76mm	1″ / 30mm
SMMG34		3″ / 76mm	4″ / 101mm	1.5″ / 38mm
SMMG35		3″ / 76mm	5″ / 127mm	2″ / 45mm
SMMG45		4″ / 101mm	5″ / 127mm	2″ / 45mm
SMMG46		4″ / 101mm	6″ / 152mm	2″ / 45mm
SMMG56		5″ / 120mm	6″ / 152mm	2″ / 45mm

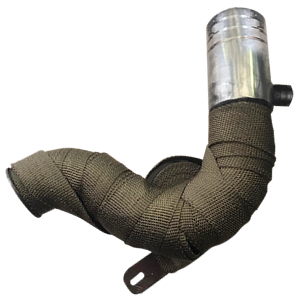

NEW! – Thermal Insulating Bandage

MARINE ENGINE MANUFACTURER				IMAGE	FEATURES
SUITABLE FOR ALL MARINE ENGINES:  YANMAR, VOLVO PENTA, VM, IVECO AIFO, CATERPILLAR, MAN, ECC…	–	–	–		Material: The insulation tape is made of basalt fiber through a special weaving process. Basalt fiber can widthstand the temperature range of -260 °C ~ 980 °C, has the characteristics of fire prevention, high temperature resistance, sound absorption and heat insulation, heat preservation, wear resistance, long service life and can be reused. Basalt fiber is a continuos fiber drawn at high speed through platinum-rhodium alloy wire drawing bushing after basalt materiali s melted at 1450 °C ~ 1500 °C. Easy to install: wrap thermal insulating tape around the exhaust pipe and secure it with stainless steel clamps provided.

NEW! – Volvo Penta / Yanmar / VM / Volkswagen / Mercruiser / Northern Lights / Onan / Perkins Cast Stainless Steel Exhaust Riser

MARINE ENGINE MANUFACTURER	MARINE ENGINE SERIES	MARINE ENGINE MODEL	OEM	IMAGE	FEATURES
VM	4 / 6 CYLINDER SERIES	VM 90-110-140 4 CYLINDERS VM 176 6 CYLINDERS	91090139A 9109039A 21090139 11092001(A)		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 33 MM FLANGE DIAMETER 90 MM WEIGHT 5KG BASALT FIBER INSULATION, GASKETS, N.2 CLAMPS
VOLKSWAGEN	5 CYLINDERS TDI SERIES	VOLKSWAGEN MARINE TDI100 / TDI120 / TDI140 / TDI150 / TDI165	065253171 065253171A		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 105 MM FLANGE DIAMETER 89 MM WATER INLET DIAMETER 33MM WEIGHT 4 KG
MERCRUISER	–	1989 4530110BD / 1989 4636110BD / 1991 4530110D / 1993 436L110FD / 1990 4530110CD / 1992 4636110EU / 1993 430B110FD / 1988 4636110AD / 1991 4636110DD / 1992 4636110ED / 1992 4636110ED / 1993 436L115FD / 1993 436B110FD / 1991 4530110DD / 1993 430B1103D / 1991 4636110CD / 1990 4636110CD / 1988 4530110AD / 1992 4530110EU / 1993 436B1103D	805602A1		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 32 MM FLANGE DIAMETER 89 MM THREADED HOLES DIAMETER 46 MM WEIGHT 5,9 KG   GASKET
NORTHERN LIGHTS	GENERATORS SERIES	M643 / M673 / M673L	NL-27-38003 NL-27-38007 NL-27-38008 135616570		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER OD 30,48 MM WEIGHT 1 KG   GRAPHITE GASKET
NORTHERN LIGHTS	GENERATORS SERIES	M16C / M20CL / M20CR / M20CR2 / M20CRW2 / M753W2 / NL753W2 / M753G / M773LW2 / M773LW3 / NL773LW3 / M843NW2 / M843NW3 / NL843NW2 / NL843NW3 / L844D / M844K / M844LK / M844K2 / M844LK2 / M844LW2 / M844W2 / NL844K / NL844LK / NL844K2 / NL844LK2 / NL844LW2 / NL844W2	NL-27-32003 NL-27-32004 NL-27-32014 135616232 135616233 135616234 135616235		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER OD 50,8 MM DISCHARGE DIAMETER ID 44,5 MM WEIGHT 2,3 KG   GRAPHITE GASKET
NORTHERN LIGHTS	GENERATORS SERIES	M30C / M30CW / M33C / M33CW / M38CR2 / M864K / M864W / M864W3 / L944D / M944T / M944W / NL944D2 / ML944T2 / L984 / M984K / M984W / ML984	NL-27-39513 NL-27-35413 NL-27-35400 NL-27-31412		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 77 MM THREADED BORE DIAMETER 19,6 MM WEIGHT 3 KG   GRAPHITE GASKET
ONAN	GENERATORS SERIES	MDKDL / MDKDM / MDKDN / 7MDKAL / MDKBN / MDKBL / MDKBM	155-3261-02		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER EXHAUST DIAMETER OD 50 MM EXHAUST DIAMETER ID 34 MM WATER INLET DIAMETER 19 MM WEIGHT 1,8 KG   GRAPHITE GASKET
ONAN	GENERATORS SERIES	MDKD-P / MDKD-R / MDKD-V (10-20KW)	154-3163		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER OD 76,2 MM WATER INLET DIAMETER OD 19 MM WEIGHT 3 KG   0155-3061 GASKET
PERKINS	GENERATORS SERIES	4.236 Lowline (late model) / M90 Lowline	37765461		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER OD 76 MM WATER INLET DIAMETER OD 28,5 MM PESO 3,6 KG   GASKET BRONZE PLUG AND WATER BARB
YANMAR	6 CYLINDERS SERIES	6LY-STE / 6LY-UTE / 6LYA-STE / 6LYA-STP / 6LYA-UTE / 6LY2M-WDT / 6LY2M-WST / 6LY3-ETP / 6LY3-STP / 6LY3-UTP	119574-13500 119574-13501 119574-13510 119574-13530 719578-13500		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 38 MM DISCHARGE DIAMETER 127 MM WEIGHT 5,7 KG SUPPLIED WITH: 119547-13251 GAS INLET GASKET
YANMAR	4/6 CYLINDERS SERIES	4LH-STE / 4LH-YA / 6LP-DTE / 6LP-STE / 6LPA-STP / 6LPA-DPT / 4LHA-HTE / 4LHA-DTE / 4LHA-HTP / 4LHA-DTP / 4LHA-STP / 6LP-STC2 / 6LPA-DTP / 6LPA-STZP / 4LHA-STZE / 4LHA-STZP / 4LHA-DTZE / 4LHA-DTZEP / 4LHA-HTZE / 6LPA-DTZP / 4LHA-HTZEP / 6LPA-STZE / 6LPA-STZEP / 6LPA-DTZE / 6LPA-DTZEP / 4LV-150 / 4LV-170 / 4LV-195 / 4LV-230 / 4LV-250 / 8LV-320 / 8LV-350 / 8LV-370 / 8LV-320Z / 8LV370Z	119773-13500 119773-13501 119773-13510		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 105 MM FLANGE DIAMETER 89 MM 1 ¼ BSPT THREAD WATER INLET WEIGHT 4,1 KG SUPPLIED WITH: 119773-13250 GAS INLET GASKET
YANMAR	1/2 CYLINDERS SERIES	1GM / 1GM10 / 2GM / 2GM20 / 2GM20F	128170-13530		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER EXHAUST OUTLET 45 MM WATER INLET 17 MM WEIGHT 1.1 KG   SUPPLIED WITH: 128170-13200 GAS INLET GASKET
YANMAR	2/3 CYLINDERS SERIES	1GM / 2GM / 1GM10 / 3GM30 / 3GM30F / 3HM / 3HM35F / 2GMF / 3HMF / 3GMF / 2GM30F / YSM12 / 3GM10 / 3GMD / 2GM20 / 2GM30 / 2GM20F / 2YM-15 / 3YM-30 / 3YM-30 / 3YM-20 / 2QM15 / 2QM20 / 3QM30 / 3HM35	128370-13600 128270-13600 124070-13520 128370-13610 104214-13531 128990-13520		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 51 MM PIPE THREAD WATER INLET 3/8″ MM WEIGHT 2 KG SUPPLIED WITH: 104214-13580 STAINLESS STEEL NIPPLE
YANMAR	3 CYLINDER SERIES	3GM30 / 3HM35	128370-13550		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE THICKNESS IS 45% THICKER THAN OEM YANMAR (5,7 MM VS 8,2 MM) TUBE THICKNESS IS 56% THICKER THAN OEM. YANMAR (1.5MM VS 2.5MM) DISCHARGE DIAMETER 50 MM WEIGHT 1,1 KG   SUPPLIED WITH: 128370-13231 GAS INLET GASKET
YANMAR	2/3 CYLINDERS SERIES	3GM30 2YM15 (prec. al serial n. E4990) 3YM20 (prec. al serial n. E10518) 3YM30 (prec. al serial n. E17724)	128397-13530 128370-12530		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE THICKNESS IS 45% THICKER THAN OEM. YANMAR (5,7 MM VS 8,2 MM) TUBE THICKNESS IS 56% THICKER THAN OEM. YANMAR (1.5MM VS 2.5MM) WATER INLET DIAMETER 17 MM DISCHARGE DIAMETER 50 MM WEIGHT 1,1 KG SUPPLIED WITH: 128370-13201 GAS INLET GASKET
YANMAR	2/3 CYLINDERS SERIES	3YM30AE 2YM15 (succ. serial n. E4990) 3YM20 (succ. serial n. E10518) 3YM30 (succ. serial n. E17725)	128890-13530 128397-13530		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE THICKNESS IS 45% THICKER THAN OEM. YANMAR (5,7 MM VS 8,2 MM) TUBE THICKNESS IS 56% THICKER THAN OEM. YANMAR (1.5MM VS 2.5MM) WATER INLET DIAMETER 21 MM DISCHARGE DIAMETER 50 MM WEIGHT 1,1 KG SUPPLIED WITH: 128370-13201 GAS INLET GASKET
YANMAR	3 CYLINDER SERIES	3JH2E	129470-13550		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE THICKNESS IS 45% THICKER THAN OEM. YANMAR (5,7 MM VS 8,2 MM) TUBE THICKNESS IS 56% THICKER THAN OEM. YANMAR (1.5 MM VS 2.5 MM) WATER INLET DIAMETER 25.4 MM DISCHARGE DIAMETER 50 MM WEIGHT 1,1 KG SUPPLIED WITH: 129472-18090 GAS INLET GASKET
YANMAR KOHLER	3/4 CYLINDERS SERIES	3JH5E / 3JH3E / 4JHE / 4JH2E / 4JH3E / 4JH2CE / 3PNE / 13E0Z	129470-13560 129619-13560 129670-13561 129670-13560 GM13328		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE THICKNESS IS 45% THICKER THAN OEM. YANMAR (5,7 MM VS 8,2 MM) TUBE THICKNESS IS 56% THICKER THAN OEM. YANMAR (1.5MM VS 2.5MM) WATER INLET DIAMETER 25 MM DISCHARGE DIAMETER 77 MM WEIGHT 1,1 KG SUPPLIED WITH: 129472-18090 GAS INLET GASKET
YANMAR KOHLER	4 CYLINDERS SERIES	4JH4-HTE1 / 4JH4-HTE / 4JH3-HTE / 4JH3-DTE / 4JF57	129671-13552		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 25 MM DISCHARGE DIAMETER 76 MM WEIGHT 2 KG CAREFULLY CHECK OEM AND WATER INLET POSITION SUPPLIED WITH: 129472-13520 GAS INLET GASKET 23893-020002 / 129671-13570 PLUG
YANMAR KOHLER	4 CYLINDERS SERIES	4JH3-TE / 4JH2L-HT / 4JH2-UTE / 4JH2-UTBE / 4JH2-TE / 4JH2-TBE / 4JH2-DTE / 4JH2-DTBE	129671-13551 129671-13552 129579-13551 129673-13551 129673-13552 129792-13552		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 25 MM DISCHARGE DIAMETER 76 MM WEIGHT 2 KG CAREFULLY CHECK OEM AND WATER INLET POSITION SUPPLIED WITH: 129472-13520 GAS INLET GASKET 23893-020002 / 129671-13570 PLUG
YANMAR	4 CYLINDERS SERIES	4LH-TE / 4LH-HTE	119171-13530 119171-13540		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 32 MM DISCHARGE DIAMETER 89 MM WEIGHT 6,1 KG SUPPLIED WITH: 119171-13510 GAS INLET GASKET
YANMAR	4 CYLINDERS SERIES	4LH-TE / 4LH-HTE / 4LH-THE / 4LH-HTZ / 4LH-HTZAY	119171-13490		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 32 MM DISCHARGE DIAMETER 89 MM WEIGHT 3 KG   SUPPLIED WITH: 119171-13510 GAS INLET GASKET
YANMAR	4 CYLINDERS SERIES	4LH-STE / 4LH-DTE	119181-13500		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 32 MM DISCHARGE DIAMETER 105 MM WEIGHT 3,7 KG SUPPLIED WITH: 119171-13510 GAS INLET GASKET
YANMAR	4 CYLINDERS SERIES	4LH-TE / 4LH-DTE / 4LH-HTE / 4LH-STE	119173-13500 119173-13501		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 32 MM DISCHARGE DIAMETER 92 MM WEIGHT 4 KG SUPPLIED WITH: 119173-18811 GAS INLET GASKET
YANMAR	6 CYLINDERS SERIES	6LY2-STE / 6LYA-STE / 6LYA-STP / 6LY3-UTP / 6LY2M-WST / 6LY3-STP / 6LY2M-WDT	119575-13300		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE DIAMETER 116 MM BORE DIAMETER 72 MM WEIGHT 3,6 KG SUPPLIED WITH: 119547-13251 N.2 GASKETS
YANMAR	6 CYLINDERS SERIES	6LY2-STE / 6LYA-STE / 6LYA-STP / 6LYA-UTE / 6LYA-STP / 6LYA-STE / 6LY-UTE / 6LY-STE / 6LY3-ETP / 6LY2M-WST / 6LY3-STP / 6LY2M-WDT	119575-13301		KIT CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER UP RISER FLANGE DIAMETER 116 MM BORE DIAMETER 72 MM RISER DISCHARGE DIAMETER 127 MM WATER INLET DIAMETER 38 MM WEIGHT 10 KG SUPPLIED WITH: 119547-13251 N.3 GASKETS 119574-13300 N.2 CLAMPS 119575-13320 EXHAUST INSULATION BLANKET 119575-13300 BRACKET
YANMAR EXHAUST INSULATION BLANKET	6 CYLINDERS SERIES	6LY2M-WST / 6LY3-STP / 6LY2M-WDT	119575-13320		WITH STAINLESS STEEL CLOSING WIRES SUITABLE FOR 119575-13300 EXHAUST
YANMAR	6 CYLINDERS SERIES	6LP-DTE / 6LP-STE / 6LPA-STP / 6LPA-STP2	119778-13300 119778-13301		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE DIAMETER 89 MM BORE DIAMETER 72 MM WEIGHT 4 KG SUPPLIED WITH: 119574-13251 N.2 GASKETS
YANMAR	6 CYLINDERS SERIES	6LP-DTE / 6LP-STE / 6LPA-STP / 6LPA-STP2	119778-13301 119778-13300		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER UP-RISER FLANGE DIAMETER 89 MM BORE DIAMETER 72 MM RISER DISCHARGE DIAMETER 105 MM FLANGE DIAMETER 89 MM WEIGHT 10 KG   SUPPLIED WITH: 119778-13300 / 119778-13301 UP RISER 119773-13500 / 119773-13501 RISER 119773-13250 N.3 GUARNIZIONI 119773-13300 N.2 CLAMP 119778-13310 COPERTURA TERMICA 119175-13700 SCUDO
YANMAR EXHAUST INSULATION BLANKET	6 CYLINDERS SERIES	6LP-DTE / 6LP-STE / 6LPA-STP / 6LPA-STP2	119778-13310		WITH STAINLESS STEEL CLOSING WIRES SUITABLE FOR 119778-13300 EXHAUST
YANMAR	4 CYLINDERS SERIES	4LHA-STE / 4LHA-STE-YA / 4LHA-DTE / 4LHA-DTZE / 4LHA-HTE / 4LHA-STP2	119175-13200		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE DIAMETER 89 MM BORE DIAMETER 67 MM WEIGHT 2 KG SUPPLIED WITH: 119773-13250 N.2 GASKETS
YANMAR	4 CYLINDERS SERIES	4LHA-STE / 4LHA-STE-YA / 4LHA-DTE / 4LHA-DTZE / 4LHA-HTE / 4LHA-STP2	119175-13201 119175-13200		KIT CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER UP RISER FLANGE DIAMETER 89 MM BORE DIAMETER 67 MM RISER DISCHARGE DIAMETER 105 MM FLANGE DIAMETER 89 MM WEIGHT 10 KG SUPPLIED WITH: 119175-13200 / 119175-13201 UP RISER 119773-13500 / 119773-13501 RISER 119773-13300 N.2 CLAMP 119175-13220 EXHAUST INSULATION BLANKET 119778-13300 HEAT SHIELD 119773-13250 N.3 GASKETS
YANMAR EXHAUST INSULATION BLANKET	4 CYLINDERS SERIES	4LHA-STE / 4LHA-STE-YA / 4LHA-DTE / 4LHA-DTZE / 4LHA-HTE / 4LHA-STP2	119175-13220		WITH CLOSING SPRINGS SUITABLE FOR 119175-13200 EXHAUST
YANMAR	4/6 CYLINDERS SERIES	4LHA-STZE / 4LHA-STZP / 4LHA-DTZE / 4LHA-DTZEP / 4LHA-HTZE / 4LHA-HTZEP / 6LPA-STZE / 6LPA-STZEP / 6LPA-DTZE / 6LPA-DTZEP	119175-13301 119175-13300		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE DIAMETER 89 MM BORE DIAMETER 67 MM WEIGHT 5 KG SUPPLIED WITH: 119773-13250 N.2 GASKETS
YANMAR	4/6 CYLINDERS SERIES	4LHA-STZE / 4LHA-STZP / 4LHA-DTZE / 4LHA-DTZEP / 4LHA-HTZE / 4LHA-HTZEP / 6LPA-STZE / 6LPA-STZEP / 6LPA-DTZE / 6LPA-DTZEP	119175-13301 119175-13300		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER UP RISER FLANGE DIAMETER 89 MM BORE DIAMETER 67 MM RISER DISCHARGE DIAMETER 105 MM FLANGE DIAMETER 89 MM WEIGHT 10 KG SUPPLIED WITH: 119175-13300 /119175-13301 UP RISER 119773-13250 N.3 GASKETS 119773-13500 / 119773-13501 RISER 119773-13300 N.2 CLAMP 119175-13320 EXHAUST INSULATION BLANKET 119175-13700 HEAT SHIELD 119778-13550 MOUNTING BRACKET
YANMAR EXHAUST INSULATION BLANKET	4/6 CYLINDERS SERIES	4LHA-DTZE / 4LHA-DTZEP / 4LHA-HTZE / 4LHA-HTZEP / 4LHA-STZ / 4LHA-STZP / 6LPA-DTZE / 6LPA-DTZEP / 6LPA-STZE / 6LPA-STZEP	119175-13320		WITH CLOSING SPRINGS SUITABLE FOR 119175-13301 EXHAUST
YANMAR	8 CYLINDERS SERIES	8LV320 / 8LV350 / 8LV370 / 8LV320Z / 8LV350Z / 8LV370Z	119799-13350 119799-13370		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER FLANGE DIAMETER 89 MM WEIGHT 2 KG SUPPLIED WITH: 119779-13250 N.2 GASKETS 119799-13370 EXHAUST INSULATION BLANKET
YANMAR	8 CYLINDERS SERIES	8LV320 / 8LV350 / 8LV370 / 8LV320Z / 8LV350Z / 8LV370Z	SERIE 8LV KIT		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WEIGHT 13,6 KG SUPPLIED WITH: 119773-13500 / 119773-13501 RISER 119799-13350 UP RISER 119798-13510 UP RISER 119798-13200 BELLOW/JOINT 119799-13370 INSULATION BLANKET 119798-13530 INSULATION BLANKET 119798-13581 INSULATION BLANKET 119773-13250 N.2 GASKETS 119773-13300 N.2 CLAMP 119798-13450 N.3 CLAMP 119799-13550 BRACKET 119799-13560 TRANSOM BRACKET 119798-13750 LONG BRACKET
VOLVO PENTA	MD1-3/MD6-7/MD11-17 SERIES	MD1B / MD2B / MD3B / MD6A / MD6B / MD7A / MD7B / MD11C / MD11D / MD17C / MD17D	833583		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 46 MM WEIGHT 2.2 KG SUPPLIED WITH: WATER / GAS INLET GASKET
VOLVO PENTA	D1/D2 SERIES	MD2010 / MD2010A / MD2010B / MD2010-C / MD2010-D / MD2020 / MD2020A / MD2020B / MD2020-C / MD2020-D / MD2030A / MD2030B / MD2030-C / MD2030-D / MD2030 / M2040 / MD2040A / MD2040B / MD2040-C / MD2040-D / M35 / D1-13A / D1-13B / D1-13F / D1-20A / D1-20B / D1-30B / D2-40 / D2-40B / D1-20F / D1-30F / D1-40F / 120S-E / 120S-E / MS2L-D / MS2A-D / 120S-D / MS2B-R / MS2A-E / MS2L-E / MS2B-R / MS2A-D / MS2A-E / MS2L-D / MS2L-E / 120S-D / 120S-E	861906		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 44.5 MM WATER INLET 22.2 MM WEIGHT 3 KG SUPPLIED WITH: 861907 GAS INLET GASKET
VOLVO PENTA	D1/D2 SERIES	MD2010 / MD2010A / MD2010B / MD2010-C / MD2010-D / MD2020 / MD2020A / MD2020B / MD2020-C / MD2020-D / MD2030A / MD2030B / MD2030-C / MD2030-D / MD2030 / M2040 / MD2040A / MD2040B / MD2040-C / MD2040-D / M35 / D1-13A / D1-13B / D1-13F / D1-20A / D1-20B / D1-30B / D2-40 / D2-40B / D1-20F / D1-30F / D1-40F / 120S-E / 120S-E / MS2L-D / MS2A-D / 120S-D / MS2B-R / MS2A-E / MS2L-E / MS2B-R / MS2A-D / MS2A-E / MS2L-D / MS2L-E / 120S-D / 120S-E	861906		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 44.5 MM WATER INLET 19 MM WEIGHT 3 KG SUPPLIED WITH: 861907 GAS INLET GASKET
VOLVO PENTA	2003 SERIES	2003T / 2003TB	840930 840931 859112		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 57 MM WEIGHT 3 KG SUPPLIED WITH: 949657 O-RING 418445 SEALING RING
VOLVO PENTA	2000 / 2001 / 2002 / 2003 SERIES	2000 / 2001 / 2002 / 2003	840690		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 19 MM DISCHARGE DIAMETER 44.5 MM WEIGHT 3 KG SUPPLIED WITH: 861907 GAS INLET GASKET
VOLVO PENTA	2000 / 2001 / 2002 / 2003 SERIES	2000 / 2001 / 2002 / 2003	840891 840690 840797 943194 418445 840676 955269		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 19 MM DISCHARGE DIAMETER 44.5 MM WEIGHT 3 KG   SUPPLIED WITH: 861907 n.2 GAS INLET GASKET 840891 n.1 RISER 418445 n.4 URETHANE GASKETS 943174 n.2 WASHERS 840676 n.4 CLAMPS 840797 n.2 PLUGS 955269 n.4 BOLTS 955309 n.2 SHORT BOLTS 955312 n.2 LONG BOLTS
VOLVO PENTA	–	AD40B / AQAD40A / AQAD40B / AQD40A / TMD40B / TMD40C / TAMD40A	845261 845528		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 32 MM DISCHARGE DIAMETER 101 MM WEIGHT 4,5KG SUPPLIED WITH: 90 DEGREE WATER HOSE BARB KIT (BARB, GASKET, BOLTS)
VOLVO PENTA	–	AD31L-A / AD31P-A / AD41L-A / AD41P-A / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41H-A / TAMD41H-B / TAMD41P-A / MD22L / MD22P / MD22L-B /MD22P-B / TAMD22P-C / TAMD22P-B / HS25A / HS25A-B /120S-E / MS2L-E / MS2B-L / TAMD22B / TMD22-P / TMD22P-3	3582512 861413		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 25 MM DISCHARGE DIAMETER 89 MM WEIGHT 3 KG SUPPLIED WITH: 861414 GAS INLET GASKET
VOLVO PENTA	–	AD31B / AD31D-A / AD31L-A / AD31P-A / AD31XD / AD41B / AD41D / AD41L-A / AD41P-A / D41B / D41D / D41L-A / D5A-B TA / D5A-T / D5A-TA / D7A-B TA /D7A-T / D7A-TA / D7C-B TA / D7C-TA / KAD300-A / KAD32P-A / KAD42A / KAD42B / KAD42P-A / KAD43P-A / KAD44P-A / KAD44P-B / KAD44P-C / KAMD300-A / KAMD42A / KAMD42B / KAMD42P-A / KAMD43P / KAMD43P-A / KAMD43P-B / KAMD44P-A / KAMD44P-C / MD31A / TAMD31B / TAMD31D / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41B / TAMD41D / TAMD41H-A / TAMD41H-B / TAMD41L-A / TAMD41M-A / TAMD41P-A / TAMD42B / TAMD42WJ-A / TMD31B / TMD31D / TMD31L-A / TMD41B / TMD41D / TMD41L-A /	861289		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER ID 102 MM DISCHARGE DIAMETER OD 106 MM WATER INLET DIAMETER ID 29 MM WATER INLET DIAMETER OD 38 MM WEIGHT 3,4 KG
VOLVO PENTA	–	AD31A / AD31B / AD31D-A / AD31L-A / AD31P-A / AD31XD / AD41A / AD41B / AD41D / AD41L-A /AD41P-A / AQAD31A / AQAD41A / D41A / D41B / D41D / D41L-A / MD31A / TAMD31A / TAMD31B / TAMD31D / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41A / TAMD41B / TAMD41D / TAMD41H-A / TAMD41H-B / TAMD41L-A / TAMD41M-A / TAMD41P-A / TMD31A / TMD31B / TMD31D / TMD31L-A / TMD41A / TMD41B / TMD41D / TMD41L-A	859963 858481		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER ID 80 MM DISCHARGE DIAMETER OD 93 MM WATER INLETS 22 MM WEIGHT 3,4 KG
VOLVO PENTA	D2 MD22 SERIES	D2-55A / D2-55B / MD22L-B / MD22L-A	3589544 21424345 3776F024		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 24.4 MM DISCHARGE DIAMETER 57 MM WEIGHT 4.0KG SUPPLIED WITH: 859834 GASKET 859835 GASKET 859836 / 3587410 STAINLESS STEEL HOSE BARB
VOLVO PENTA	D2 MD22 SERIES	D2-55C / D2-55D / D2-55E / D2-55F / MD22L-B / MD22P	861574 3589544 21424345 3776F024		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER 25.4 MM DISCHARGE DIAMETER 57 MM WEIGHT 4.0KG SUPPLIED WITH: 888596 GASKET 859835 GASKET 859836 / 3587410 STAINLESS STEEL HOSE BARB URETHANE SEAL TO REPLACE BLACK RUBBER OEM SEALS
VOLVO PENTA	D2 SERIES	D2-75	3584413		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WATER INLET DIAMETER ID 21 MM WATER INLET DIAMETER OD 32 MM DISCHARGE DIAMETER 89 MM WEIGHT 5.5KG SUPPLIED WITH: 859834 GASKET 859835 GASKET 859836 / 3587410 STAINLESS STEEL HOSE BARB

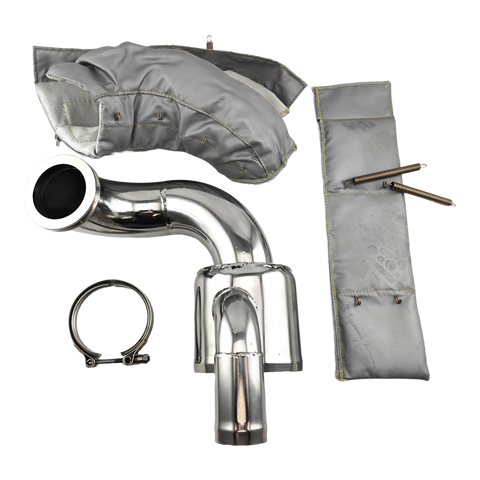

VOLVO PENTA	D4 SERIES	D4-180 / D4-210 / D4-225 / D4-260 / D4-300	21684826 22948832		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WEIGHT 5KG SUPPLIED WITH: GASKET, HOSE BARB, COVER PLATE, CLAMP AND SENSOR PLUG W/BRASS WASHER
VOLVO PENTA	D6 SERIES	D6-300A-F / D6-300I-F / D6-330A-F / D6-330D-F / D6-330I-F / D6-370A-F / D6-370D-F / D6-370I-F	3583902 21700014 22948847		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WEIGHT 6KG SUPPLIED WITH: GASKET, CLAMP, HOSE BARB, COVER PLATE, AND SENSOR PLUG W/BRASS WASHER
VOLVO PENTA	D6 SERIES	D6-280A-A / D6-280A-B / D6-280A-C / D6-280A-D / D6-280A-E / D6300D-F / D6-300A-F / D6-310A-A / D6-310A-B / D6-310A-D / D6-310A-E / D6-310D-B / D6-310D-C / D6-310D-D / D6-310D-E / D6-330A-B / D6-330A-C / D6-330A-D / D6-330A-E / D6-330A-F / D6-330D-B / D6-330D-C / D6-330D-D / D6-330D-E / D6-330D-F / D6-350A-A / D6-350A-B / D6-370A-B / D6-370A-C / D6-370A-D / D6-370A-E / D6-370A-F / D6-370D-B / D6-370D-C / D6-370D-D / D6-370D-E /D6-370D-F / D6-400A-F / D6-435D-F	22948844 21684825		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WEIGHT 6KG SUPPLIED WITH: 21450768 N.2 HOSE BARB KITS SENSOR PLUG W/BRASS WASHER
VOLVO PENTA	D5 D7 TAMD74 SERIES	D5A-T / D5A-B / D5A-TA / D7A-T / D7A-TA / D7A-B TA / D7C-TA / D7C-B TA / TAMD61-A / TAMD63L-A / TAMD63P-A / TAMD71B / TAMD73P-A / TAMD73WJ-A / TAMD74A / TAMD74A-A / TAMD74A-B / TAMD74C-A / TAMD74C-B / TAMD74L-A / TAMD74L-B / TAMD74P-A / TAMD74P-B / TAMD75P-A / 848544	3830988		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER DISCHARGE DIAMETER 125 MM FLANGE DIAMETER 115 MM WEIGHT 4,1 KG
VOLVO PENTA	D5 D7 TAMD74 SERIES	D5A-T / D5A-B / D5A-TA / D7A-T / D7A-TA / D7A-B TA / D7C-TA / D7C-B TA / TAMD61-A / TAMD63L-A / TAMD63P-A / TAMD71B / TAMD73P-A / TAMD73WJ-A / TAMD74A / TAMD74A-A / TAMD74A-B / TAMD74C-A / TAMD74C-B / TAMD74L-A / TAMD74L-B / TAMD74P-A / TAMD74P-B / TAMD75P-A / 848544	3829021 / 865075		UP RISER FLANGE DIAMETER 115 MM
VOLVO PENTA	D5 D7 TAMD74 SERIES	D5A-T / D5A-B / D5A-TA / D7A-T / D7A-TA / D7A-B TA / D7C-TA / D7C-B TA / TAMD63L-A / TAMD61-A / TAMD63P-A / TAMD71B / TAMD73P-A / TAMD73WJ-A / TAMD74A / TAMD74A-A / TAMD74A-B / TAMD74C-A / TAMD74C-B / TAMD74L-A / TAMD74L-B / TAMD74P-A / TAMD74P-B / TAMD75P-A / 848544	3830988 3829021 865075		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER UP RISER FLANGE DIAMETER 115 MM RISER DISCHARGE DIAMETER 125 MM FLANGE DIAMETER 115 MM WEIGHT 13 KG SUPPLIED WITH: 3830988 RISER 3829021 / 865075 UP RISER N.2 119574-13300 CLAMP THERMAL INSULATING BANDAGE BRONZE BARB
VOLVO PENTA THERMAL INSULATING BANDAGE	D5 D7 TAMD60/70 SERIES	D5A-T, D5A-B, D5A-TA, D7A-T, D7A-TA, D7A-B TA, D7C-TA, D7C-B TA, TAMD63L-A, TAMD63P-A, TAMD71B, TAMD73P-A, TAMD73WJ-A, TAMD74A, TAMD74A-A, TAMD74A-B, TAMD74C-A, TAMD74C-B, TAMD74L-A, TAMD74L-B, TAMD74P-A, TAMD74P-B, TAMD75P-A	3829021		WITH CLOSING SPRINGS SUITABLE FOR 3829021 EXHAUST
VOLVO PENTA	AQD70 TAMD70	AQD70B / AQD70BL / AQD70C / AQD70CL / MD70C / TAMD60A / TAMD60B / TAMD60C / TAMD61A / TAMD70B / TAMD70C / TAMD70D / TAMD70E / TAMD71A / TAMD71B / THAMD70B / TMD70B / TMD70C	836745 823770		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WEIGHT 8KG   SUPPLIED WITH: 836745 EXHAUST RISER FLANGE GASKET CLAMP NOTE: THE OEM WATER CONNECTOR WILL NEED TO BE MODIFIED TO FIT THE RISER.
VOLVO PENTA	D12 SERIES	D12D-A MH / D12DB MH / D12D-C MH / D12D-E MH / D12D-G MH / D12C-A MP / D12D-A MP / D12D-B MP / D12D-C MP / D12D-E MP / D12D-F MP / D12D-G MP / D12D-H MP / TAMD165A-A / TAMD164C-A / TAMD165P-A	3827940		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WEIGHT 6,4KG SUPPLIED WITH: THERMAL INSULATING BANDAGE N.2 863442 FLANGE N.2 863353 GASKETS
VOLVO PENTA	D12 SERIES	D12D-A MH / D12DB MH / D12D-C MH / D12D-E MH / D12D-G MH / D12C-A MP / D12D-A MP / D12D-B MP / D12D-C MP / D12D-E MP / D12D-F MP / D12D-G MP / D12D-H MP / TAMD165A-A / TAMD164C-A / TAMD165P-A	21411117		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WEIGHT 12,7 KG SUPPLIED WITH: 21411117 RISER 813644 WATER CONNECTOR N.2 863442 FLANGE CLAMP 863353 GASKET N.2 914392 LARGE PLUG N.2 479979 / 981749 SMALL PLUG N.2 947626 GASKET PLUG
VOLVO PENTA	D12 SERIES	D12D-A MH / D12DB MH / D12D-C MH / D12D-E MH /D12D-G MH / D12C-A MP / D12D-A MP / D12D-B MP / D12D-C MP / D12D-E MP / D12D-F MP / D12D-G MP / D12D-H MP / TAMD165A-A / TAMD164C-A / TAMD165P-A	21411117 3827940		CAST 316 STAINLESS STEEL ELBOW / MIXER / EXHAUST RISER WEIGHT 19 KG SUPPLIED WITH: 21411117 RISER 3827940 UP RISER N.4 863442 FLANGE CLAMP THERMAL INSULATING BANDAGE 813644 WATER CONNECTOR N.2 863353 GASKET N.2 914392 LARGE PLUG N.2 479979 / 981749 SMALL PLUG N.2 947626 GASKET PLUG
VOLVO PENTA HOSE BARB	D4 D6 SERIES	D4-180 / D4-210 / D4-225 / D4-260 / D4-300 / D6-300 / D6-330 / D6-370	21450768 21684826 21700014 3583902 3841508 3884701		CAST 316 STAINLESS STEEL HOSE BARB SUPPLIED WITH: O-RING 969415 AND BOLTS
VOLVO PENTA HOSE BARB	KAD / KAMD / TAMD / AD / D41 / TMD SERIES		872752		CAST 316 STAINLESS STEEL HOSE BARB SUPPLIED WITH: O-RING
VOLVO PENTA HOSE BARB	DPH SERIES		40005192		CAST 316 STAINLESS STEEL HOSE BARB SUPPLIED WITH: O-RING
CUMMINS FLANGE	–	6BTA 5.9 / QSB 5.9 / 4BTA / 6CTA / EARLY 6BTA / QSC 8.3 / QSB 6.7	–		316 STAINLESS STEEL FLANGE TURBO-SIDE GASKET CLAMP
YANMAR / VOLVO PENTA FLANGE	–	6LY-UTE / AQD70B / AQD70BL / AQD70C / AQD70CL / MD70C / TAMD60A / TAMD60B / TAMD60C / TAMD61A / TAMD70B / TAMD70C / TAMD70D / TAMD70E / TAMD71A / TAMD71B / THAMD70B / TMD70B / TMD70C	823770		GASKET CLAMP
YANMAR THREAD	–	4LH-STE / 4LH-YA / 6LP-DTE / 6LP-STE / 6LPA-STP / 6LPA-DPT / 4LHA-HTE / 4LHA-DTE / 4LHA-HTP / 4LHA-DTP / 4LHA-STP / 6LP-STC2 / 6LPA-DTP / 6LPA-STZP / 4LHA-STZE / 4LHA-STZP / 4LHA-DTZE / 4LHA-DTZEP / 4LHA-HTZE / 6LPA-DTZP / 4LHA-HTZEP / 6LPA-STZE / 6LPA-STZEP / 6LPA-DTZE / 6LPA-DTZEP / 4LV-150 / 4LV-170 / 4LV-195 / 4LV-230 / 4LV-250 / 8LV-320 / 8LV-350 / 8LV-370 / 8LV-320Z / 8LV370Z	SMVO1-1/4-30MM		BRASS FOR 1 ¼ BSPT THREAD WATER INLET OD FOR RUBBER HOSE 30MM
YANMAR THREAD	–	4LH-STE / 4LH-YA / 6LP-DTE / 6LP-STE / 6LPA-STP / 6LPA-DPT / 4LHA-HTE / 4LHA-DTE / 4LHA-HTP / 4LHA-DTP / 4LHA-STP / 6LP-STC2 / 6LPA-DTP / 6LPA-STZP / 4LHA-STZE / 4LHA-STZP / 4LHA-DTZE / 4LHA-DTZEP / 4LHA-HTZE / 6LPA-DTZP / 4LHA-HTZEP / 6LPA-STZE / 6LPA-STZEP / 6LPA-DTZE / 6LPA-DTZEP / 4LV-150 / 4LV-170 / 4LV-195 / 4LV-230 / 4LV-250 / 8LV-320 / 8LV-350 / 8LV-370 / 8LV-320Z / 8LV370Z	SMVO1-1/4-35MM		BRASS FOR 1 ¼ BSPT THREAD WATER INLET OD FOR RUBBER HOSE 35MM
VOLVO PENTA / YANMAR CLAMP	–	4LH-DTP / 4LH-HTP / 4LH-STE / 4LH-STP / 4LH-YA / 4LHA-DTE / 4LHA-HTP / 4LHA-STP / 4LHA-THE / 6LP-DTE / 6LP-STC2 / 6LP-STE / 6LPA-DPT / 6LPA-STP / 8LV350(2) / AD31A / AD31B / AD31D-A / AD31L-A / AD31P-A / AD31XD / AD41A / AD41B / AD41D / AD41L-A / AD41P-A / AQAD31A / AQAD41A / D4-180 / D4-210 / D4-225 / D4-260 / D4-300 / D41A / D41B / D41D / D41L-A / D5A-B TA / D5A-T / D5A-TA / D7A-B TA / D7A-T / D7A-TA / D7C-B TA / D7C-TA / KAD300-A / KAD42A / KAD42B / KAD42P-A / KAD43P-A / KAD44P-A / KAD44P-B / KAD44P-C / KAMD300-A / KAMD42A / KAMD42B / KAMD42P-A KAD32P-A / KAMD43P / KAMD43P-A / KAMD43P-B / KAMD44P-A / KAMD44P-C / MD31A / TAMD31A / TAMD31B / TAMD31D / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41A / TAMD41B / TAMD41D / TAMD41H-A / TAMD41H-B / TAMD41L-A / TAMD41M-A / TAMD41P-A / TAMD42B / TAMD42WJ-A / TMD31A / TMD31B / TMD31D / TMD31L-A / TMD41A / TMD41B / TMD41D / TMD41L-A	119773-13300		316 STAINLESS STEEL CLAMP 84 x 92 mm
VOLVO PENTA / YANMAR CLAMP	–	6LY-400 / 6LY-STE / 6LY-UTE / 6LY2-(A) STE(P) / 6LY2-STE / 6LY2M-WDT / 6LY2M-WST / 6LY3-STP / 6LY3-UTP / 6LYA-STE / 6LYA-STP / 6LYA-UTE / D5A-B / D5A-T / D5A-TA / D6-300A-F / D6-300I-F / D6-330A-F / D6-330D-F / D6-330I-F / D6-370A-F / D6-370D-F / D6-370I-F / D7A-B TA / D7A-T / D7A-TA / D7C-B TA / D7C-TA / TAMD63L-A / TAMD63P-A / TAMD71B / TAMD72 / TAMD73P-A / TAMD73WJ-A / TAMD74A / TAMD74A-A / TAMD74A-B / TAMD74C-A / TAMD74C-B / TAMD74L-A / TAMD74L-B / TAMD74P-A / TAMD74P-B / TAMD75P-A	119574-13300		316 STAINLESS STEEL CLAMP 112 x 120 mm
VOLVO PENTA PLATE	–	AD31L-A / AD31P-A / AD41L-A / AD41P-A / D41L-A / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41H-A / TAMD41H-B / TAMD41P-A / TAMD41L-A / TAMD41M-A / TMD31L-A / TMD41L-A / MD31A / TMD31A / TMD31B / TAMD31A / TAMD31B / AD31A / AQAD31A / AD31B / TMD41A / TMD41B / D41A / D41B / TAMD41A / TAMD41B / AQAD41A / AD41A / AD41B / MD31A / TMD31B / TAMD31B / AD31B / TMD41B / D41B / TAMD41B / AD41B / AD31D-A / AD31XD / TAMD31D / TMD31D / AD41D / D41D / TAMD41D / TMD41D / KAD42P-A / KAMD42P-A KAD32P-A / TAMD42WJ-A / KAD43P-A / KAMD43P / KAMD43P-A / KAMD43P-B / KAD44P-A / KAD44P-B / KAD44P-C / KAMD44P-A / KAMD44P-C / KAD300-A / KAMD300-A / AD31L-A / AD31P-A / AD41L-A / AD41P-A / D41L-A / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41H-A / TAMD41H-B / TAMD41P-A / TAMD41L-A / TAMD41M-A / TMD31L-A / TMD41L-A / D5A-T / D5A-TA / D5A-B TA / D7A-T / D7A-TA / D7A-B TA / D7C-TA / D7C-B TA /MD31A / TMD31B / TAMD31B / AD31B /TMD41B / D41B / TAMD41B / AD41B / KAD42A / KAMD42A / AD31D-A / AD31XD / TAMD31D / TMD31D / AD41D / D41D / TAMD41D / TMD41D KAD42B / KAMD42B / TAMD42B / AD31L-A / AD31P-A	844093		PRECISION CNC MACHINED INVESTMENT CAST BRONZE PLATE SUPPLIED WITH: GASKET AND BOLTS
VOLVO PENTA PLATE	D4 D6 SERIES	D4-180 / D4-210 / D4-225 / D4-260 / D4-300 / D6-300 /D6-330 / D6-370	3584006		CAST 316 STAINLESS STEEL SUITABLE FOR 21684826 / 21700014 / 3583902 / 3841508 / 3884701 RISER SUPPLIED WITH: O-RING 969415 AND BOLTS
VOLVO PENTA HOSE CONNECTION	858659	AD31L-A / AD31P-A / AD41L-A / AD41P-A / D41L-A / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41H-A / TAMD41H-B / TAMD41P-A / TAMD41L-A / TAMD41M-A / TMD31L-A / TMD41L-A / MD31A / TMD31A / TMD31B / TAMD31A / TAMD31B / AD31A / AQAD31A / AD31B / TMD41A / TMD41B / D41A / D41B / TAMD41A / TAMD41B / AQAD41A / AD41A / AD41B / AD31D-A / AD31XD / TAMD31D / TMD31D / AD41D / D41D / TAMD41D / TMD41D / KAD42P-A / KAMD42P-A / KAD32P-A / TAMD42WJ-A / KAD43P-A / KAMD43P / KAMD43P-A / KAMD43P-B / KAD44P-A / KAD44P-B / KAD44P-C / KAMD44P-A / KAMD44P-C / KAD300-A / KAMD300-A / D5A-T / D5A-TA / D5A-B TA / D7A-T / D7A-TA / D7A-B TA / D7C-TA / D7C-B TA / KAD42A / KAMD42A / TMD41D / KAD42B / KAMD42B / TAMD42B	858659		PRECISION CNC MACHINED INVESTMENT CAST BRONZE HOSE SUITABLE FOR 859963 / 858481 / 861289 / 3582512 RISER SUPPLIED WITH: GASKET AND BOLTS

Stainless steel and cast iron exhaust

(*send image for check)

MARINE ENGINE MANUFACTURER	MARINE ENGINE SERIES	MARINE ENGINE MODEL	OEM	IMAGE	FEATURES
STEYR	NEW!	SE156E34 3.2L 154CV	Z002626-0		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 SET CONTAINS THERMAL INSULATION, V-CLAMP AND GASKETS
MERCRUISER	NEW!	5.0, 5.7, 305, 350 V8 1987-2002	riser: 807988A2, 44354A3 manifold: 87114, 860246		EXHAUST RISER: 807988A2, 44354A3 EXHAUST MANIFOLD: 87114, 860246 SET CONTAINS 2x EXHAUST RISERS, 2x EXHAUST MANIFOLDS AND INCLUDES BOLTS AND GASKETS
VOLVO PENTA	NOVITÀ!	4.3L 6C	EXHAUST RISER: 3889964 + 3889965 MANIFOLD: 3852338		N.2 High Riser (Height 25,7CM / 10,3″) 3889964 + 3889965 N.2 Manifold: 3852338 oe: 3847499 – 3857656 – 3857678 SET CONTAINS 2x EXHAUST RISERS, 2x EXHAUST MANIFOLDS AND INCLUDES BOLTS AND GASKETS
VOLVO PENTA	NEW!	5.0, 5.7 8C	EXHAUST RISER: 3889964 + 3889965 MANIFOLD: 3847501		N.2 High Riser (Height 25,7CM / 10,3″) 3889964 + 3889965 N.2 Manifold: 3847501 oe: 914035 – 3857723 – 3852374 – 3852374-2 SET CONTAINS 2x EXHAUST RISERS, 2x EXHAUST MANIFOLDS AND INCLUDES BOLTS AND GASKETS
KOHLER / YANMAR	4 CYLINDERS SERIE	4JH3-HTE / 4JH3-DTE / 4JH3-DTE(YEU) / 4JH4-HTE / 4JH4-TE	129673-13552		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	1 / 2 CYLINDERS SERIE	1GM / 1GM10 / 2GM / 2GM20 / 2GM20-YEU	128170-13530		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	3 CYLINDERS SERIE	3YM	128370-13530 128890-13530 128397-13530		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	3 CYLINDERS SERIE	3JH2E-DTE	129171-13550		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	3 / 4 CYLINDERS SERIE	3JH3E /3JH3E (EPA) / 3JH3CE / 3JH4E / 3JH5E / 4JH3E / 4JH3CE / 4JH3CE1 / 4JH4E / 4JH4AE / 4JH5E	129670-13561		MIXER / EXHAUST ELBOW STAINLESS STEEL 316

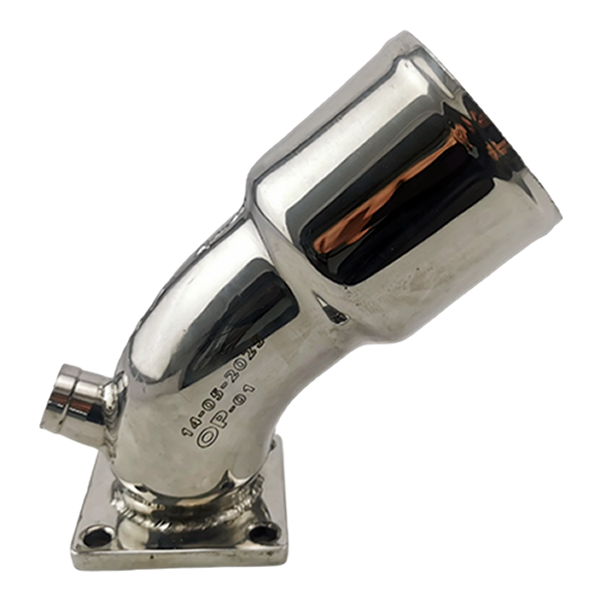

YANMAR	4 CYLINDERS SERIE	4JH4E	129670-13580		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	4 / 6 CYLINDERS SERIE	4BY / 4BY-PL / 4BY2 / 6BY / 6BY-PL	120650-13930		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	4 / 6 CYLINDERS SERIE	4BY150 / 4BY180 / 6BY-220 / 6BY-260 / 6BY-220Z / 6BY-260Z	120650-13400		MIXER / EXHAUST ELBOW STAINLESS STEEL 316

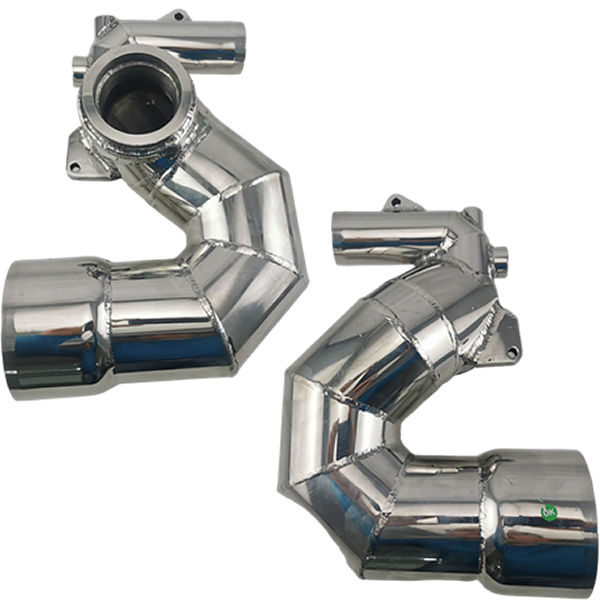

YANMAR	6 CYLINDERS SERIE	6BY3-160	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	6 CYLINDERS SERIE 6LYA / UTIE 315HP / 6LY2A STP	6LYA – UTIE315HP 6LYA STP 420/440/500 CV / 6LYA-UTE / 6LYA-STP / 6LYA-STE / 6LY-UTE / 6LY-STE / 6LY3-ETP / 6LY3-UTP / 6LY2M-WST / 6LY3-STP / 6LY2M-WDT	119574-13500 119574-13501 119574-13510 119574-13530 719578-13500		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	6 CYLINDERS SERIE	6LP-DTESTE 6LPA-D/ST(Z)E(P)	119778-13300		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 INSULATION AVAILABLE ON REQUEST
YANMAR	6 CYLINDERS SERIE 260/315CV	6LPSTE 6LPDTE	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	4 CYLINDERS SERIE IP-4LHA-YA-76-VS SERIES	4LHA-STE /4LHA-DTE / 4LHA-DTZE / 4LHAHTE / 4LHA-STP2HLHA / 4LHA-STE(P) / 4LHASTZE(P) / 4LHA-DTE(P) / 4LHA-DTZE(P) / 4LHA-HTE(P) / 4LHA-HTZE(P)	119175-13200		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
YANMAR	LH SERIES	4LH-STE / 4LH-YA / 6LP-DTE / 6LP-STE / 6LPA-STP2 / 6LPA-DPT / 4LHA-HTE / 4LHA-DTE / 4LHA-DTP / 6LPA-STZP/ 4LHA-HTP / 4LHA-STP/ 6LP-STC2 / 8LV350(2) / 4LH-HTP / 4LH-DTP / 6LY2-STE / 6LY2-(A) STE (P)	119773-13500 119773-13501 119773-13510		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 THICKNESS 5MM / 3MM
VM	4 / 6 CYLINDERS SERIES	VM 90-110-140 4 CYLINDERS VM 176 6 CYLINDERS	91090139A 9109039A 21090139 11092001(A)		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
VM	4 / 6 CYLINDERS SERIES	MD704LI / MD706LI / MD704LH / MD704LX	11092126		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
VOLVO PENTA	SERIE D2 75CV	D2-75	3584413		GOMITO / MISCELATORE / RISER DI SCARICO IN ACCIAIO INOX 316
VOLVO PENTA	D4 SERIES 210/225/260/300CV specify if version inboard or not at order	D4-180I-F / D4-225A-F / D4-225I-F / D4-260A-F / D4-260D-F / D4-260I-F / D4-300A-F / D4-300A-F / D4-300D-F / D4-300I-F	3884701 21684826 22948832 *		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
VOLVO PENTA	D6 310/330/350/370CV IPS 500 SERIES specify if version inboard or not at order	D6-300A-F / D6-300D-F / D6-300I-F / D6-330A-F / D6-330D-F / D6-330I-F / D6-370A-F / D6-370D-F / D6-370I-F / D6-400A-F / D6-435D-F / D6-435I-F	22948847 *		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
VOLVO PENTA	D6 370/400/435CV SERIES	D6-370D-A / D6-370D-B / D6-370D-C / D6-370D-D / D6-370D-E / D6-400A-E / D6-435D-A / D6-435D-C / D6-435D-D / D6-435D-E	3840612		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)

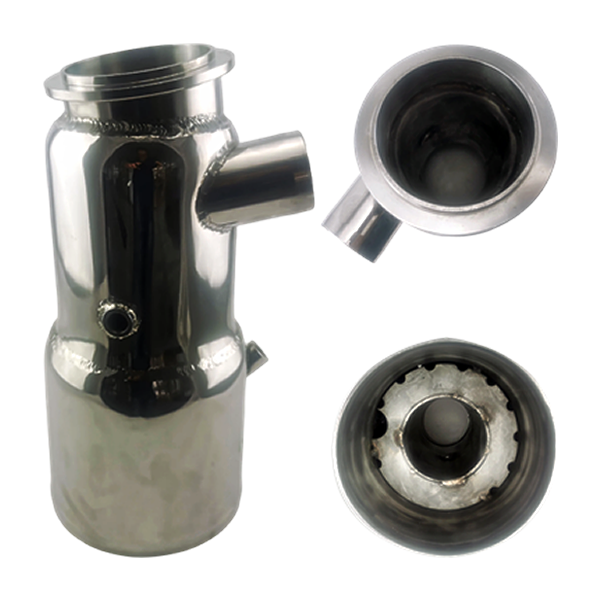

VOLVO PENTA	D8 SERIES 550/600 CV	D8A2-A MP	22696906		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
VOLVO PENTA	D9 SERIES 425/475/500/575 CV	D9 575CV WET VERSION D9A2A / D9A2A D9-425 /D9A2A D9-500 / D9A2A D9-500 (R4) / D9A2A D9-575 / D9A2B D9-425 / D9A2B D9-500 (R5) / D9A2B D9-575 / D9A2C D9-425 / D9A2D D9	22066708		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
VOLVO PENTA	D9 SERIES	D9 (CUSTOM)	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
VOLVO PENTA	D12 SERIES	D12D-A MH / D12D-B MH / D12D-C MH / D12D-E MH / D12D-G MH / D12C-A MP / D12D-A MP / D12D-B MP / D12D-C MP / D12D-D MP / D12D-E MP / D12D-F MP / D12D-G M	21411117		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 THICKNESS 5MM / 3MM
VOLVO PENTA	SERIE D12	D12 DMP CUSTOM	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 THICKNESS 5MM / 3MM
VOLVO PENTA	AQ30 / AQ40 SERIES 175CV	AD30 / AQAD30A / AD40B / AQAD40A / AQAD40B / AQD40A / TAMD30A / TAMD40A / TAMD40B / TMD40A / TMD40B / TMD40C	845261		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 THICKNESS 5MM / 3MM
VOLVO PENTA	MD31 SERIES	MD31A	844091		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 THICKNESS 5MM / 3MM
VOLVO PENTA	AQ41 200CV SERIES	AD31L-A / AD31P-A / AD41L-A / AD41P-A / D41L-A / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41H-A / TAMD41H-B / TAMD41P-A / TAMD41L-A / TAMD41M-A / TMD31L-A / TMD41L-A / MD31A / TMD31A / TMD31B / TAMD31A / TAMD31B / AD31A / AQAD31A / AD31B / TMD41A / TMD41B / D41A / D41B / TAMD41A / TAMD41B / AQAD41A / AD41A / AD41B / MD31A / TMD31B / TAMD31B / AD31B / TMD41B / D41B / TAMD41B / AD41B / AD31D-A / AD31XD / TAMD31D / TMD31D / AD41D / D41D / TAMD41D / TMD41D	858481 * 859963 *		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
VOLVO PENTA	KAD 42/43/44/300 SERIES	KAD42P-A / KAMD42P-A KAD32P-A / TAMD42WJ-A / KAD43P-A / KAMD43P / KAMD43P-A / KAMD43P-B / KAD44P-A / KAD44P-B / KAD44P-C / KAMD44P-A / KAMD44P-C / KAD300-A / KAMD300-A / AD31L-A / AD31P-A / AD41L-A / AD41P-A / D41L-A / TAMD31L-A / TAMD31M-A / TAMD31P-A / TAMD31S-A / TAMD41H-A / TAMD41H-B / TAMD41P-A / TAMD41L-A / TAMD41M-A / TMD31L-A / TMD41L-A / D5A-T / D5A-TA / D5A-B TA / D7A-T / D7A-TA / D7A-B TA / D7C-TA / D7C-B TA /MD31A / TMD31B / TAMD31B / AD31B /TMD41B / D41B / TAMD41B / AD41B / KAD42A / KAMD42A / AD31D-A / AD31XD / TAMD31D / TMD31D / AD41D / D41D / TAMD41D / TMD41D KAD42B / KAMD42B / TAMD42B	861289 *		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
VOLVO PENTA	KAD 42/43/44/300 SERIES	–	859963 *		MIXER / EXHAUST ELBOW COLUMN STAINLESS STEEL 316 (*send image for check)
VOLVO PENTA	D4 SERIES 210/225/260/300CV	–	21684826 24410864 2671224 *		MIXER / EXHAUST ELBOW COLUMN STAINLESS STEEL 316 (*send image for check)
VOLVO PENTA	TAMD74-75 SERIES 430/480CV	TAMD75 / TAMD74A / TAMD74A-A / TAMD74A-B / TAMD74C-A / TAMD74C-B / TAMD74L-A / TAMD74L-B / TAMD74P-A / TAMD74P-B / TAMD75P-A	3830988 *		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
IVECO AIFO	8060 SERIES	8060SRM	–		MIXER / EXHAUST ELBOW FLANGE STAINLESS STEEL 316 (*send image for check)
IVECO AIFO	8061 4 HOLES SERIES	8061SRM	8113434 (modified)		MIXER / EXHAUST ELBOW FLANGE STAINLESS STEEL 316 (MODIFIED VERSION) (*send image for check)
IVECO AIFO	8061 6 HOLES SERIES	8061SRM	8113434		MIXER / EXHAUST ELBOW FLANGE STAINLESS STEEL 316 6 HOLES FLANGE DISTANCE 110 MM DIAM. HOLE 11.40 MM (*send image for check)
IVECO AIFO	8061 6 HOLES SERIES	8061SRM 05	8100144		MIXER / EXHAUST ELBOW FLANGE STAINLESS STEEL 316 6 HOLES FLANGE DISTANCE 100 MM DIAM. HOLE 9MM (*send image for check)
IVECO AIFO	8060/8061 SERIES	8060SM21.10 / 8060SRM25.10 / 8060SRM25.11 / 8060SRM33.10 / 8060SRM33.10A001 / 8060SRM33.10A002 / 8061SM20.12 / 8061SRM25.10 / 8061SRM25.12 / 8061SRM25.13 / 8061SRM30.10 / 8061SRM33.10 / 8061SRM33.12	8020395		MIXER / EXHAUST ELBOW FLANGE WITH POCKET ZINC STAINLESS STEEL 316 (*send image for check)
IVECO AIFO	SERIE 8060/8061	8060SM21.10 / 8060SRM25.10 / 8060SRM25.11 / 8060SRM33.10 / 8060SRM33.10A001 / 8060SRM33.10A002 / 8061SM20.12 / 8061SRM25.10 / 8061SRM25.12 / 8061SRM25.13 / 8061SRM30.10 / 8061SRM33.10 / 8061SRM33.12	8020395 (mod)		MIXER / EXHAUST ELBOW FLANGE WITH POCKET ZINC STAINLESS STEEL 316 (MODIFIED VERSION) (*inviare foto per verifica)
IVECO AIFO	8141 SERIES	8141SRM13	8011204		MIXER / EXHAUST ELBOW FLANGE STAINLESS STEEL 316
IVECO AIFO	6-HOLE FLANGE SERIES	8285SM	–		MIXER / EXHAUST ELBOW FLANGE 6 HOLES STAINLESS STEEL 316 (*send image for check)
IVECO AIFO	4/6-HOLE FLANGE SERIES	8361SRM32	–		MIXER / EXHAUST ELBOW FLANGE 4 HOLES STAINLESS STEEL 316
IVECO AIFO	4-HOLE FLANGE SERIES	8361SRM32	–		MIXER / EXHAUST ELBOW FLANGE 4 HOLES MOD. STAINLESS STEEL 316
IVECO AIFO	4-HOLE FLANGE SERIES	8460SRM50	8020383 8020384		MIXER / EXHAUST ELBOW FLANGE 4 HOLES WITH POCKET ZINC STAINLESS STEEL 316 (*send image for check)
CATERPILLAR	–	–	128-4114 *		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
CATERPILLAR	–	3126 DITA 456 CV	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
CUMMINS	–	6BTA5.9 330CV	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
CUMMINS	–	6BTA5.9 330CV	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
CUMMINS	–	6BTA5.9 330CV	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
CUMMINS	–	6BTA5.9 330CV	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
CUMMINS	–	6CTA8.3L M2	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
FISCHER PANDA	4500	PMS 4500 FCB	–		EXHAUST MANIFOLD STAINLESS STEEL 316

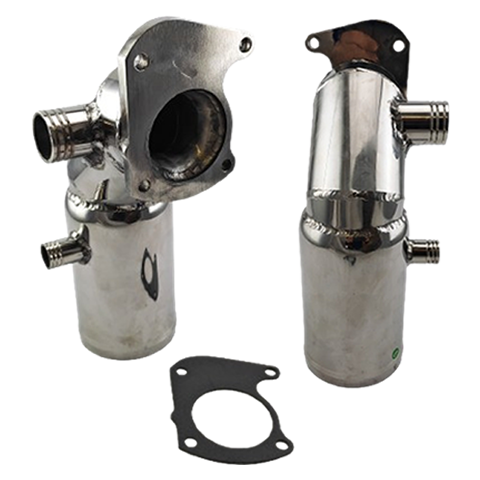

FNM	ATM	ATM100	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
FNM	ATM	ATM120 / ATM135 / ATM155 1.926L	1.015.013.1		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
JOHN DEERE	–	6090AFM85	RE534807(A)		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
KOHLER	–	–	GM47702		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
KOHLER	–	–	GM92412A		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
KOHLER	–	3TNE74C-EKMB 1.006L 11KW	3TNE74C		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
KOHLER	–	–	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
LOMBARDINI	LDW	FOCS LDW ATA 1.2L	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
LOMBARDINI	LDW	LDW 502M LDW 702M LDW 903M LDW 1003M LDW 1404M	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
LOMBARDINI	LDW	LDW 2204M	96021080		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
MASE / YANMAR	3 CYLINDERS SERIES	3TNE74 6.5L	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 RECTANGULAR FLANGE
MASE / YANMAR	3 CYLINDERS SERIES	3TNE74 6.5L	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 SQUARE FLANGE

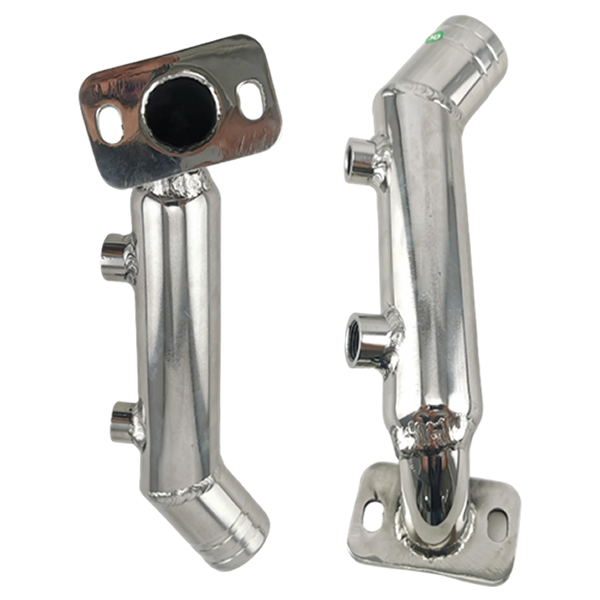

MASE / YANMAR	–	IS5.0S	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
NANNI / KUBOTA	2 CYLINDERS SERIES	2.50 HE 14 HP	307024		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
NANNI	–	4.250	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
NANNI	–	5.250 TDI	–		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
ONAN	MDK SERIES	1.5L	155-4487 155-4487-001		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
PERKINS / KOHLER	–	YH3XL	142512052260 14251-2052260		MIXER / EXHAUST ELBOW STAINLESS STEEL 316
VOLKSWAGEN MARINE	TDI 5 CYLINDER SERIES	TDI100 / TDI120 / TDI140 / TDI150 / TDI165	065253171 065253171(A)		MIXER / EXHAUST ELBOW STAINLESS STEEL 316 (*send image for check)
VOLKSWAGEN MARINE	TDI 6 CYLINDER SERIES	TDI225	06V253171		MIXER / EXHAUST ELBOW STAINLESS STEEL 316

No responsibility is assumed for the correctness/updating of the data reported, for correct identification always refer to the original manufacturer code indicated on the component plate


RANGE OF PRODUCTS CONSTANTLY UPDATED! FOR FURTHER INFORMATIONS PLEASE SEND EMAIL INFO@SAILOG.EU
