G Series G45-1125

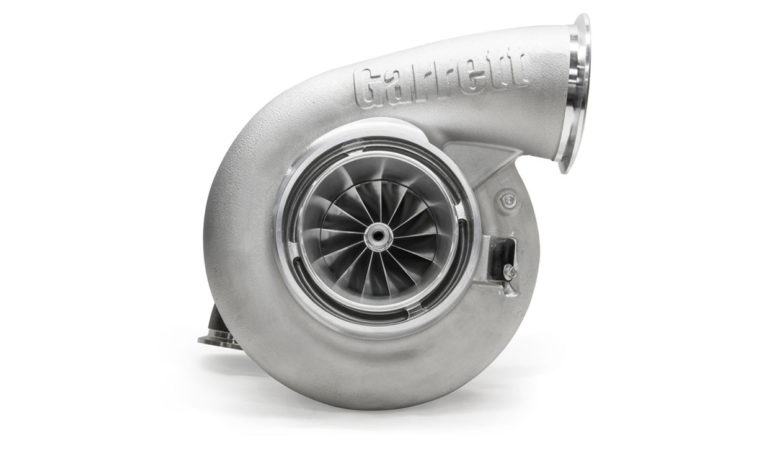

G-Series G45-1125: The Most Powerful Mid-Frame Turbocharger

Information

  • Horsepower: 600 - 1125CV
  • Displacement: 2.0L - 8.0L
  • G45-1125 compressor aero increases flow up to 10% (compared to GTX4502R 67mm)
  • 67mm compressor inducer | 102mm compressor exducer
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 14% (compared to GTX45R)
  • Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with supercore
  • Stainless steel turbine housings available in T4 divided inlet
  • Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter
  • G45-1125 Part Number: 888169-5003S
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

G45-1125 Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 600-1125 Disp: 2.0L-8.0L 67mm 102mm 44 0.85 89mm 82mm 84
Supercore PN
Standard Rotation 888169-5003S
Turbine Kits: G45 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with G45-1125 | G45-1350
| G45-1500 Supercores | G45-1350 | G45-1500 Supercores
757707-0019 1.01 V-Band V-Band Free Float N
757707-0020 1.15 V-Band V-Band Free Float N
757707-0021 1.28 V-Band V-Band Free Float N
757707-0022 1.44 V-Band V-Band Free Float N
757707-0023 1.01 T4 V-Band Free Float Y
757707-0024 1.15 T4 V-Band Free Float Y
757707-0025 1.28 T4 V-Band Free Float Y
757707-0026 1.44 T4 V-Band Free Float Y



G-Series G45-1125: the most powerful Mid-Frame Turbocharger

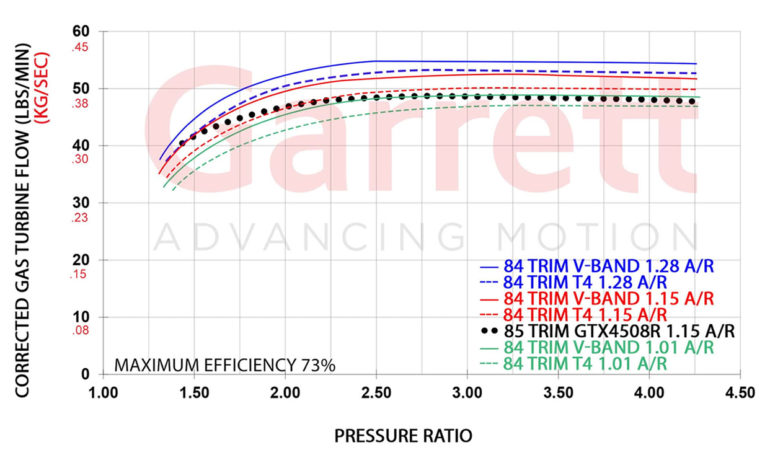

G Series G45 is available in 3 additional compressor inducer sizes, G45-1350 (72mm), G45-1500 (76mm), G45-1600 (80mm). All G45 models are interchangeable meaning they are the same size and can be swapped out without having to reconfigure any other turbo kit parts. G45 turbine housing kits are available in four A/R. 1.01 A/R | 1.15 A/R | 1.28 A/R | 1.44 A/R stainless steel housings with T4 divided inlet flange. Our 1.44 A/R T4 turbine housing flows 57 LBS/MIN of air which is a 14% increase over the GTX45 turbine wheel.


Understanding the Name: G45-1125

G designates 81 years of Garrett® heritage.
45 classifies the size of the frame.
The remaining 4 digits identify the max horsepower rating of the turbocharger. (ie 1125)
