Information
- Horsepower: 400 - 700CV
- Displacement: 2.0L - 5.0L
- 58mm compressor inducer
- 76mm compressor exducer
- Outline interchangeable with GBC37-900
- Billet compressor wheel with extended tip design for higher pressure ratios
- Journal bearing rotating group with 360-degree thrust bearing
- Machined boost signal port with installed plug
- Modern turbine wheel aerodynamics
- Oil-cooled center housing
- Supercore Part Number 913840-5001S
- ☎ Call: +39 071715693
- ✉ Send e-mail: info@saito.it
- 🌏 Worldwide delivery!
Description
| GBC35-700 | Compressor | Turbine | |||||
|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| HP: 400 -700 Disp: 2.0L-5.0L | 58mm | 76mm | 58 | 0.72 | 68mm | 62mm | 84 |
| Supercore | PN | ||||||
| Standard Rotation | 913840-5001S | ||||||
| Turbine Kits: GBC35 | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Interchangeable with GBC35 Supercores | 740902-0123 | 0.82 | T3 | V-Band | Free Float | N | |
| 740902-0124 | 0.82 | T4 | V-Band | Free Float | N | ||
| 740902-0125 | 0.95 | T4 | V-Band | Free Float | Y | ||
Compressor Aero

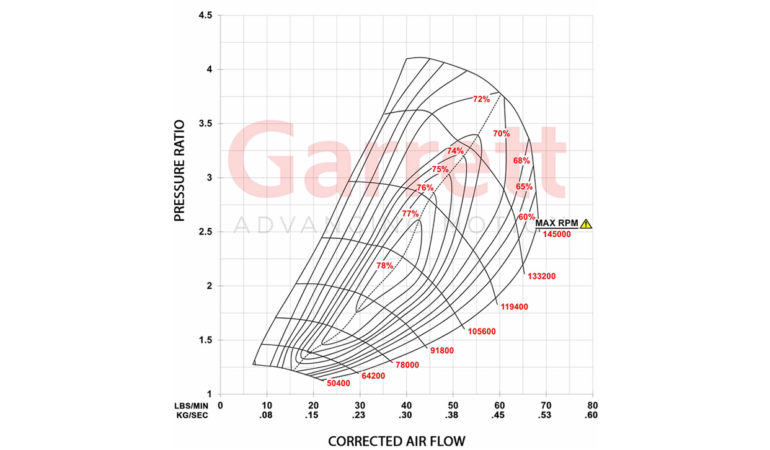

Forged, fully-machined compressor wheels with advanced aero is offered in 58mm inducer size and 76mm exducer. GBC35-700 can support from 400-700 horsepower. The compressor wheel is a 58 trim and the Compressor housing A/R is 0.72 A/R. This turbocharger can support up to 68 lbs/min of airflow and up to 4.1 pressure ratio. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power represented has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.
Journal Bearing Rotating Group
The oil cooled center housing features the latest generation of journal bearing rotor group with 360-degree thrust bearing.

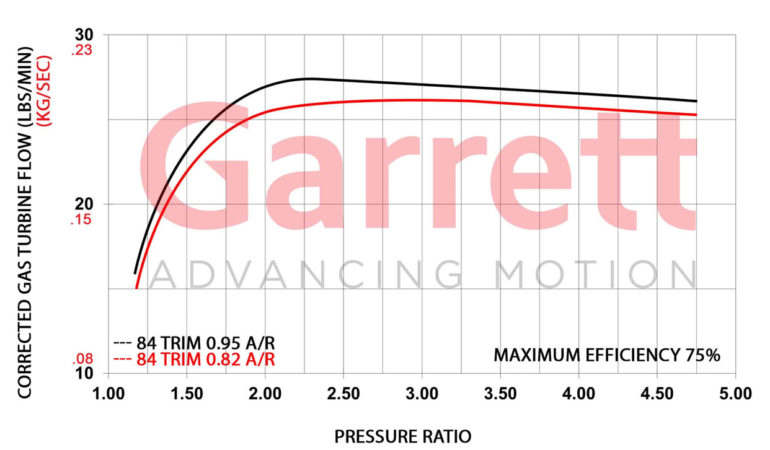

Turbine Housing
The GBC35-700 turbine housing inlet flanges are available in T3 open, T4 open, and T4 divided, and the outlet features a 90mm | 3.5 inch V-band connection.
