GT Series GT3582R

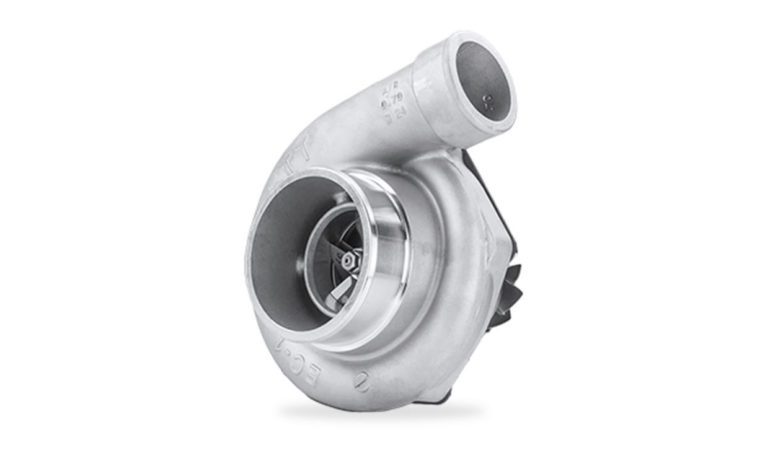

GT Series GT3582R: High Power in a Mid-Frame turbocharger

Information

  • Horsepower: 400 - 675CV
  • Displacement: 2.0L - 4.5L
  • Original GT series aerodynamics
  • 61mm turbocharger compressor option
  • Internally wastegated turbine housing
  • Non wastegated turbine housings available
  • Ball bearing configuration with water cooled chra
  • V-band turbine housing options
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description


GT3582R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 400-675 Disp: 2.0L-4.5L 61mm 82mm 56 0.70 68mm 62mm 84
Supercore PN PN
836033-5002S
Turbine Kits: GT30 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT, GTX Gen I,
and GTX Gen II 35 Series Supercores
740902-0012 0.63 T3 V-Band Free Float N
740902-0011 0.82 T3 V-Band Free Float N
740902-0010 1.06 T3 V-Band Free Float N
740902-0018 0.63 T4 V-Band Free Float N
740902-0017 0.82 T4 V-Band Free Float N
740902-0016 1.06 T4 V-Band Free Float N
740902-0033 0.61 V-Band V-Band Free Float N
740902-0032 0.83 V-Band V-Band Free Float N
740902-0031 1.01 V-Band V-Band Free Float N
PN A/R Inlet Outlet Wastegate Divided
Wastegated turbine assembly does not include bolts, clamps, or actuator 771300-0003 0.63 T25 5 Bolt Wastegated N
771300-0002 0.82 T3 5 Bolt Wastegated N



About Garrett Performance GT Series Turbochargers

Garrett GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records.

The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations.

For any performance need, GT Series turbochargers have you covered!
