GTW Series GTW3884R 62mm

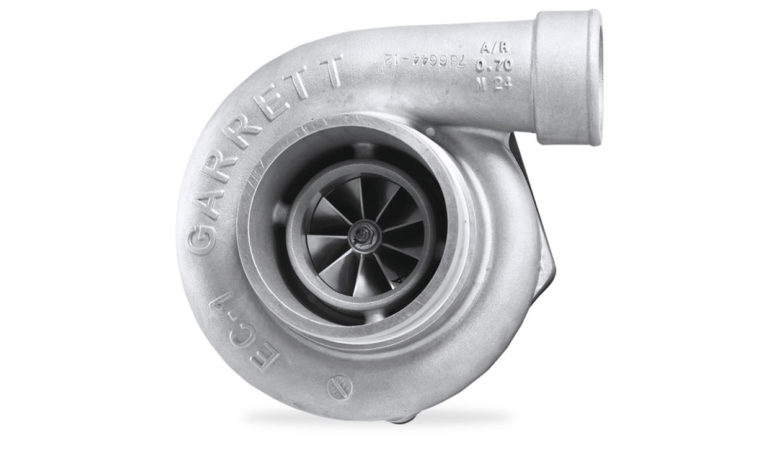

GTW Series GTW3884R: the high performance Mid-Frame turbocharger

Information

  • Horsepower: 450 - 950CV
  • Displacement: 2.0L - 6.0L
  • Ported shroud design for surge resistance
  • 62mm Turbocharger compressor option
  • Available in both journal bearing and ball bearing options
  • Forged fully-machined billet compressor wheel
  • Inconel super-alloy turbine wheel
  • Lightweight aluminum backplate
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description


GTW3884R Compressor Turbine
HP: 450-950 Disp: 2.0L-6.0L Inducer Exducer Trim A/R Inducer Exducer Trim
Supercore PN
Ball Bearing 841691-5003S 62mm 84mm 54 0.70 74mm 65mm 76
Ball Bearing 841691-5004S 64mm 84mm 58 0.70 74mm 65mm 76
Ball Bearing 841691-5005S 67mm 84mm 64 0.70 74mm 65mm 76
Journal Bearing 841297-5003S 62mm 84mm 54 0.70 74mm 65mm 76
Journal Bearing 841297-5004S 64mm 84mm 58 0.70 74mm 65mm 76
Journal Bearing 841297-5005S 67mm 84mm 64 0.70 74mm 65mm 76
Turbine Kits: GTW38 PN A/R Inlet Outlet Wastegate Divided
844669-0009 0.96 T4 V-Band Free Float N



About Garrett Performance GTW Series Turbochargers

Garrett GTW Series Turbochargers were designed to provide budget-minded enthusiasts with a high-performing mid frame product offering available in ball bearing and journal bearing options.

The fully-machined billet aluminum compressor wheels provide optimal horsepower range and boost response. Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A lightweight aluminum backplate comes standard on all GTW turbochargers and reduces overall weight.

The water cooled CHRA keeps housing temperatures to a minimum. Turbine wheels are constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures. Turbine kits are offered in T3 open volute and a variety of A/R configurations. The GTW is a cost effective option for enthusiasts looking to turbocharge their vehicles.
