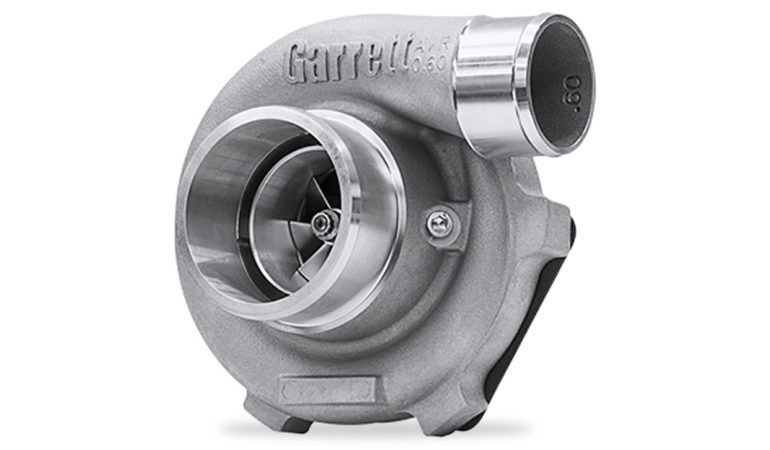

GTX Series GTX2867R GEN II

G-Series GTX2867R GEN II The Next Generation in Turbocharging Technology

Information

  • Horsepower: 275 - 550CV
  • Displacement: 1.4L - 2.5L
  • GEN II Aerodynamics Feature Increased Horsepower Range
  • 50mm Turbocharger Compressor Option
  • Improved Ported Shroud Design For Surge Resistance
  • New Fully Machined Speed Sensor Port
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

Compressor Turbine
Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
GTX2867R 50mm 67mm 55 0.60 54mm 47mm 76
Notes: Assembly Kit PN Super Core PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Assembly Kit PN Includes Super Core and Turbine Kit 856800-5007S 849894-5002S 827690-0003 0.64 T25 5 bolt Wastegated N
856800-5008S 849894-5002S 827690-0004 0.86 T25 5 bolt Wastegated N
856800-5005S 849894-5002S 827690-0001 0.57 V-Band V-Band Free Float N
856800-5006S 849894-5002S 827690-0002 0.72 V-Band V-Band Free Float N



GTX GEN II: The Next Generation in Turbocharging Technology!

Garrett Motion is excited to introduce the GTX2867R GEN II Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.


Cross Compatibility with Turbo Turbine Housing Kits

All GTX GEN II series turbochargers are compatible with all existing GT and GTX turbine housings kits. GEN II turbochargers are only offered through Garrett Motion authorized distribution centers.
