GTX Series GTX4088R

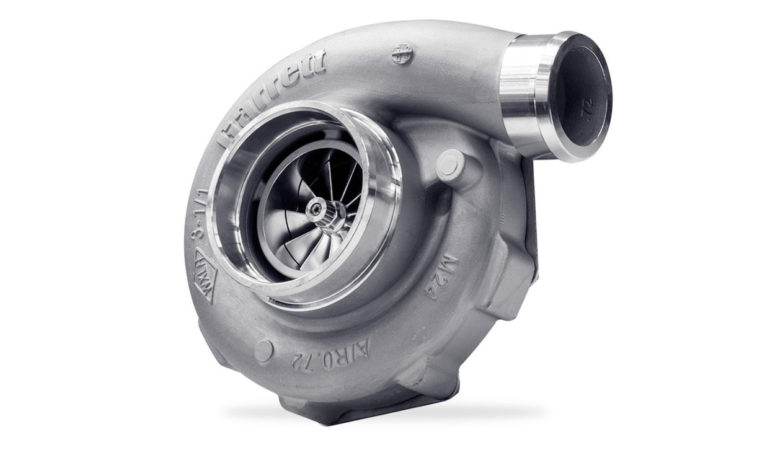

GTX Series GTX4088R: the most powerful Mid-Frame Turbocharger

Information

  • Horsepower: 460 - 850CV
  • Displacement: 2.0L - 6.0L
  • Features original GTX comp wheel aerodynamics
  • 65mm Compressor inducer
  • Supercore and turbine kit sold separately
  • Available only with T4 divided turbine housings
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

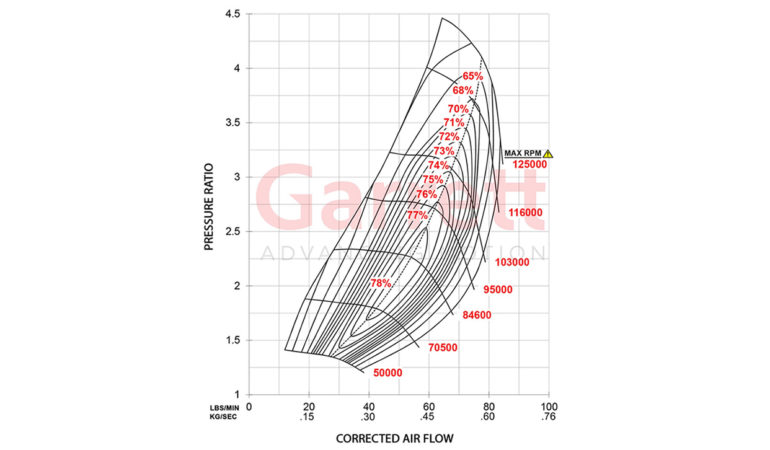

GTX4088R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 460-850 Disp: 2.0L-6.0L 65mm 88mm 54 0.72 77mm 68mm 78
Supercore PN
Standard Rotation 825614-5005S

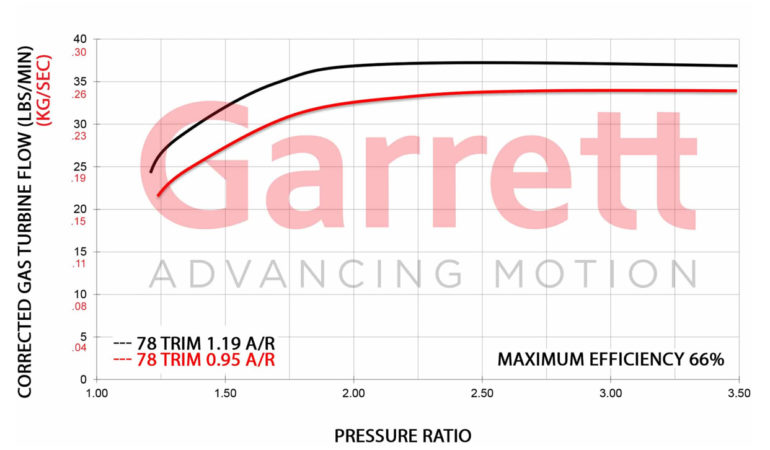

Turbine Kits: GTX40 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT | GTX 4088 Supercores 773628-0011 0.95 T4 V-Band Free Float Y
773628-0013 1.19 T4 V-Band Free Float Y



About Garrett Performance GTX Series Turbochargers

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
