Information
- Horsepower: 525 - 1120CV
- Displacement: 2.0L - 7.0L
- Super Core And Turbine Kit Sold Separately
- Available Only With Divided Turbine Housings
- V-Band Compressor Outlet Configuration
- 76mm Compressor Inducer
- Turbo Option For Ls Engine Applications
- Super Core Part Number: 880269-5002s
- ☎ Call: +39 071715693
- ✉ Send e-mail: info@saito.it
- 🌏 Worldwide delivery!
Description
| GTX4202R | Compressor | Turbine | |||||
|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| HP: 525-1120 Disp: 2.0L-7.0L | 76mm | 102mm | 55 | 0.60 | 82mm | 75mm | 84 |
| Supercore | PN | ||||||
| Standard Rotation | 800269-5002S | ||||||
| Turbine Kits: GTX42 | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Interchangeable with GT|GTX 4294R | 4202R Supercores |
757707-0001 | 1.01 | T4 | V-Band | Free Float | Y | |
| 757707-0002 | 1.15 | T4 | V-Band | Free Float | Y | ||
| 757707-0003 | 1.28 | T4 | V-Band | Free Float | Y | ||
| 757707-0004 | 1.44 | T4 | V-Band | Free Float | Y | ||

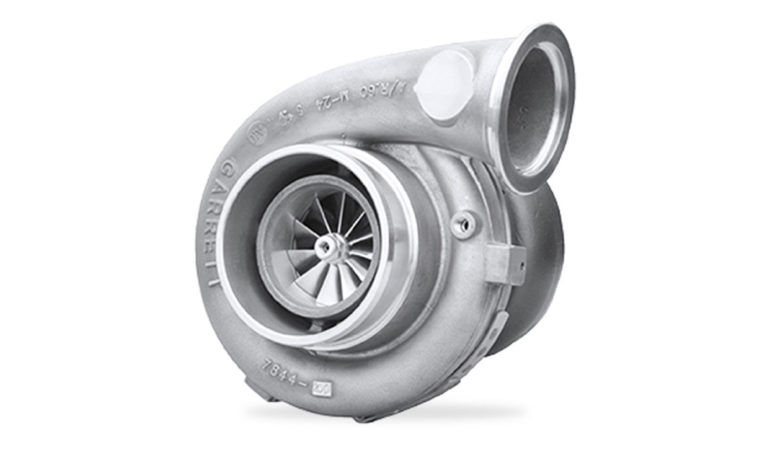

About Garrett Performance GTX Series Turbochargers
Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
