GTX Series GTX5533R GEN II 94mm

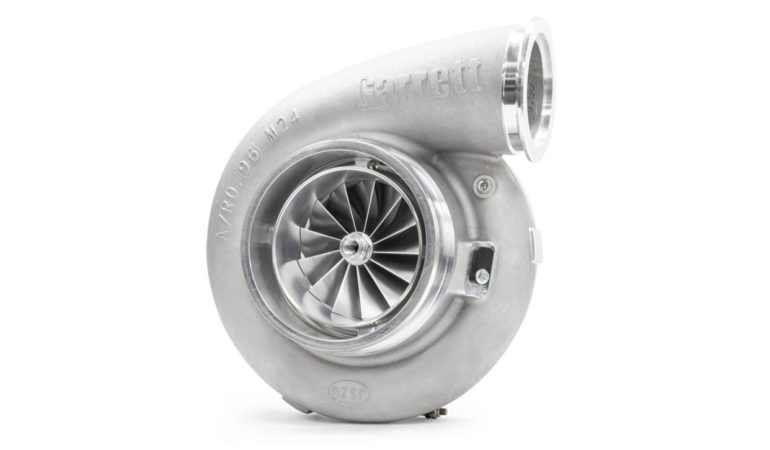

GTX Series GTX5533R GEN II: the most powerful Large-Frame Turbocharger

Information

  • Horsepower: 1000 - 2250CV
  • Displacement: 3.0L - 12.0L
  • GEN II aerodynamics feature increased horsepower range
  • 94mm compressor inducer | 133mm compressor exducer
  • 112mm turbine inducer | 102mm turbine exducer
  • Flows up to 205 lbs/min | 2250 horsepower
  • New fully-machined speed sensor port
  • Improved ported shroud design for surge resistance
  • Light weight billet backplate
  • Sfi supercore and turbine options available
  • V-band compressor outlet configuration
  • 94mm supercore pn: 851285-5004S
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

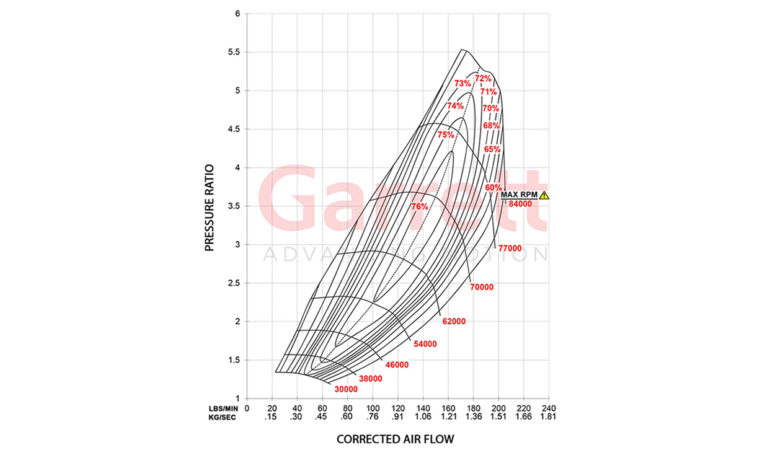

GTX5533R GEN II Compressor Turbine
HP: 1000-2500 Disp: 3.0L-12.0L Inducer Exducer Trim A/R Inducer Exducer Trim
Supercore PN
851285-5001S 85mm 133mm 41 0.88 112mm 102mm 84
851285-5002S 88mm 133mm 44 0.88 112mm 102mm 84
851285-5003S 91mm 133mm 47 0.96 112mm 102mm 84
851285-5004S 94mm 133mm 50 0.96 112mm 102mm 84
851285-5005S 98mm 133mm 54 0.96 112mm 102mm 84

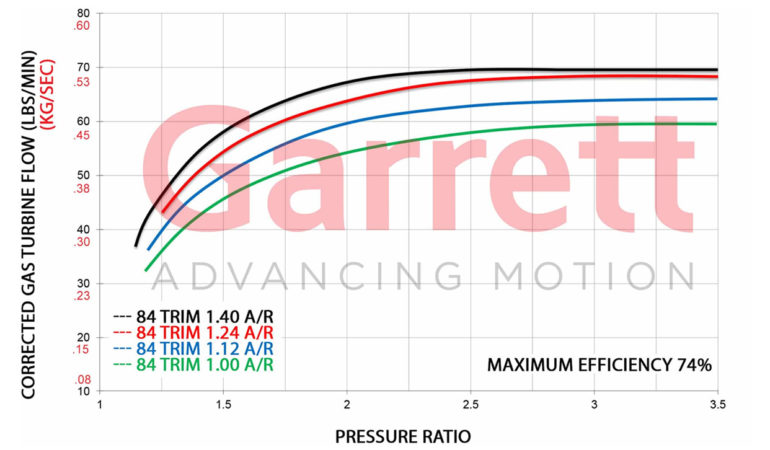

Turbine Kits: GTX55 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT|GTX 5533 5544 Supercores

* Long outlet with cross bolts

*761208-0062 1.24 V-Band V-Band Free Float N
*761208-0063 1.40 V-Band V-Band Free Float N
761208-0064 1.24 V-Band V-Band Free Float N
761208-0065 1.40 V-Band V-Band Free Float N
761208-0015 1.12 T6 V-Band Free Float N
761208-0025 1.24 T6 V-Band Free Float N
761208-0017 1.40 T6 V-Band Free Float N



About Garrett Performance GTX Series Turbochargers

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
