G Series G50-1900 88|120mm

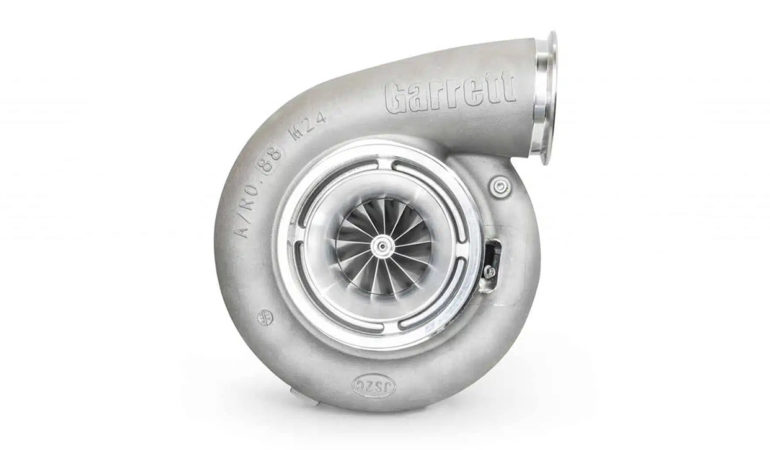

G-Series G50-1900 88mm: The Most Powerful Large-Frame Turbocharger

Information

  • Horsepower: 1000 - 1900CV
  • Displacement: 2.5L - 11.0L
  • Outline interchangeable with GTX Gen II turbos
  • Supports up to 1900 flywheel horsepower
  • High flow, high efficiency GTX Gen II comp aero
  • G-Series turbine wheel aero increases performance compared to GTX50 Gen II. Flow: up to 23% more; Spool: up to +12% (estimated by flow, efficiency, and inertia).
  • One-piece lightweight aluminum center hsg/backplate
  • Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction
  • G50-1900 Part Number: 880547-5028S
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

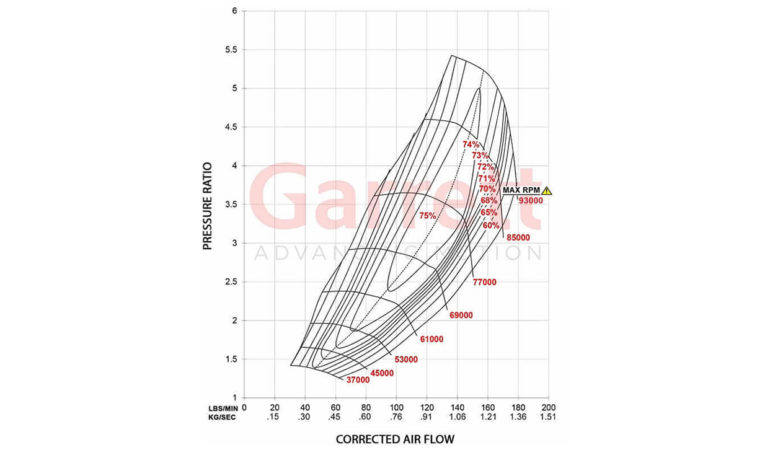

G50-1900 Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 1000-1900 Disp: 2.5L-11.0L 88mm 120mm 54 0.88 99mm 94mm 90
Supercore PN
Standard Rotation 880547-5028S

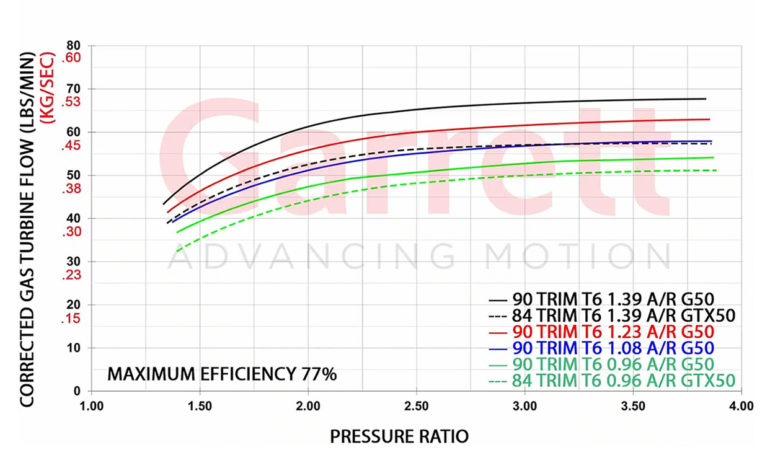

Turbine Kits: G50 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with G-Series G50 supercores 761208-0079 0.96 T6 V-Band Free Float N
761208-0080 1.08 T6 V-Band Free Float N
761208-0081 1.23 T6 V-Band Free Float N
761208-0082 1.39 T6 V-band Free Float N



G-Series G50-1900: The Most Powerful Large-Frame Turbocharger

G Series G50 is available in 2 configurations. 80mm 109mm | 88mm 120mm compressor measurements. All G-Series G50 models are interchangeable meaning the supercore can be swapped into any turbine housing out without having to reconfigure any other turbo kit parts.


Understanding the Name: G50-1900

G designates 81 years of Garrett® heritage.
50 classifies the size of the frame.
The remaining 4 digits identify the max horsepower rating of the turbocharger. (ie 17900)
