Information
- Horsepower: 500 - 1250CV
- Displacement: 2.0L - 6.0L
- New compressor aero technology increases power and performance, with up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
- Direct upgrade path for Gen I owners with just a CHRA swap. G-Series II utilizes Gen I compressor and turbine housings.
- Calibration required to take advantage of increased flow for a horsepower upgrade.
- Increased efficiency at high flow rates.
- Stainless steel turbine housings are rated up to 1050° C.
- Water fittings included.
- ☎ Call: +39 071715693
- ✉ Send e-mail: info@saito.it
- 🌏 Worldwide delivery!
- BUY ONLINE
Description
| G-Series II G40-1250 | Compressor | Turbine | |||||
|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| HP: 500-1250 Disp: 2.0L-6.0L | 71mm | 88mm | 65 | 0.80 | 77mm | 70mm | 84 |
| Supercore | PN | ||||||
| 938272-5002S | |||||||
| CHRA | PN | ||||||
| 938271-5002S | |||||||
| Turbine Kits: | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Free Float Turbine Housing | 757707-0027 | 0.85 | V-Band | V-Band | Free Float | N | |
| 757707-0028 | 0.95 | V-Band | V-Band | Free Float | N | ||
| 757707-0029 | 1.06 | V-Band | V-Band | Free Float | N | ||
| 757707-0030 | 1.19 | V-Band | V-Band | Free Float | N | ||
| 757707-0032 | 0.85 | T4 | V-Band | Free Float | Y | ||
| 757707-0033 | 0.95 | T4 | V-Band | Free Float | Y | ||
| 757707-0034 | 1.06 | T4 | V-Band | Free Float | Y | ||
| 757707-0035 | 1.19 | T4 | V-Band | Free Float | Y | ||
Harness the Power of Legends and Experience the Durability of Champions

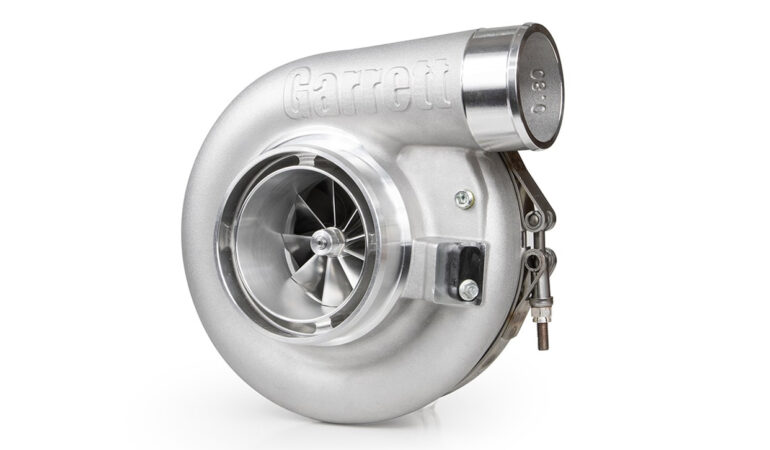

Whether you’re a kit maker or an owner of a high-performance vehicle, now you can harness the power of motorsport legends and experience the durability of champions in your car with the NEW G-Series II universal Performance Turbos line from Garrett. Designed with the same quality and craftmanship that has powered motorsport legends for over 4 decades. G-Series II turbochargers are available in multiple frame sizes to suit your individual needs, whether as a complete new turbo or as a CHRA swap to upgrade your G-Series I Turbo.
Understanding the Name: G40-1250
G designates 81 years of Garrett® heritage.
40 classifies the size of the frame
The remaining 4 digits identify the max horsepower rating of the turbocharger (ie 1250)
