GTX Series GTX4294R

GTX Series GTX4294R: the most powerful Mid-Frame Turbocharger

Information

  • Horsepower: 475 - 950
  • Displacement: 2.0L - 7.0L
  • Features original GTX comp wheel aerodynamics
  • 70mm turbocharger compressor option
  • Supercore and turbine kit sold separately
  • Available only with divided turbine housings
  • V-band compressor outlet configuration
  • Turbo option for Ls engine applications
  • Supercore part number: 880269-5001s
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

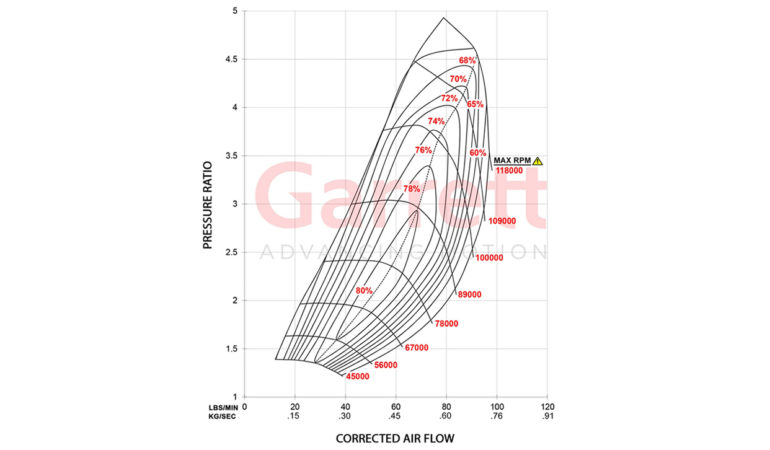

GTX4294R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 475-950 Disp: 2.0L-7.0L 70mm 94mm 56 0.60 82mm 75mm 84
Supercore PN
Standard Rotation 800269-5001S

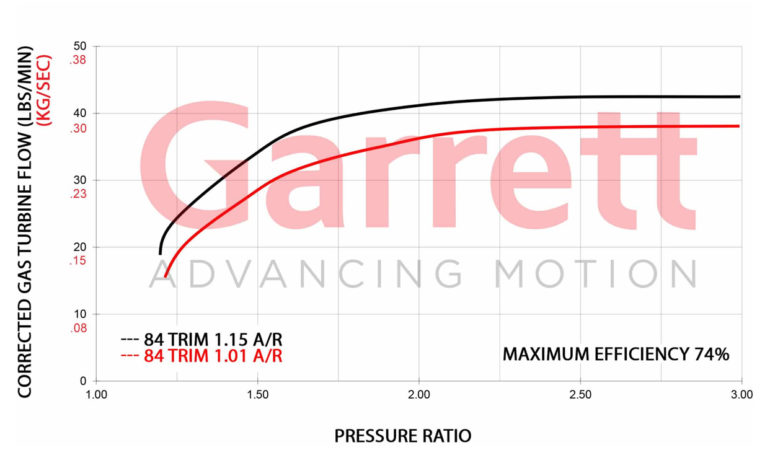

Turbine Kits: GTX42 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT|GTX 4294R
| 4202R Supercores
757707-0001 1.01 T4 V-Band Free Float Y
757707-0002 1.15 T4 V-Band Free Float Y
757707-0003 1.28 T4 V-Band Free Float Y
757707-0004 1.44 T4 V-Band Free Float Y



About Garrett Performance GTX Series Turbochargers

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
