Information
- Horsepower: 1025 - 1850CV
- Displacement: 2.5L - 10.0L
- Gen II compressor wheel aerodynamics
- 76mm Compressor inducer | 120mm compressor exducer
- 93mm Turbine inducer | 84mm turbine exducer
- 9% Increased compressor flow
- Larger .88 a/r compressor housing volute
- GTX4720R features a 120mm comp exducer ( + 2 mm) and has 30% lower inertia compared to GTX4718R
- Supercore and turbine housing sold separately
- Compatible with gt and gtx turbine housings
- 76mm Supercore pn: 851285-5013s
- ☎ Call: +39 071715693
- ✉ Send e-mail: info@saito.it
- 🌏 Worldwide delivery!
Description
| GTX4720R GEN II | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| HP: 1025-1950 Disp: 2.5L-10.0L | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| Supercore | PN | |||||||
| 851285-5013S | 76mm | 120mm | 41 | 0.88 | 93mm | 84mm | 82 | |
| 851285-5014S | 80mm | 120mm | 45 | 0.88 | 93mm | 84mm | 82 | |
| 851285-5015S | 88mm | 120mm | 54 | 0.88 | 93mm | 84mm | 82 | |
| Turbine Kits: GTX47 | PN | A/R | Inlet | Outlet | Wastegate | Divided | ||
| Interchangeable with GT|GTX 4708 4709 4718 4720 Supercores |
761208-0009 | 0.96 | T6 | V-Band | Free Float | N | ||
| 761208-0010 | 1.08 | T6 | V-Band | Free Float | N | |||
| 761208-0011 | 1.23 | T6 | V-Band | Free Float | N | |||
| 761208-0012 | 1.39 | T6 | V-Band | Free Float | N | |||

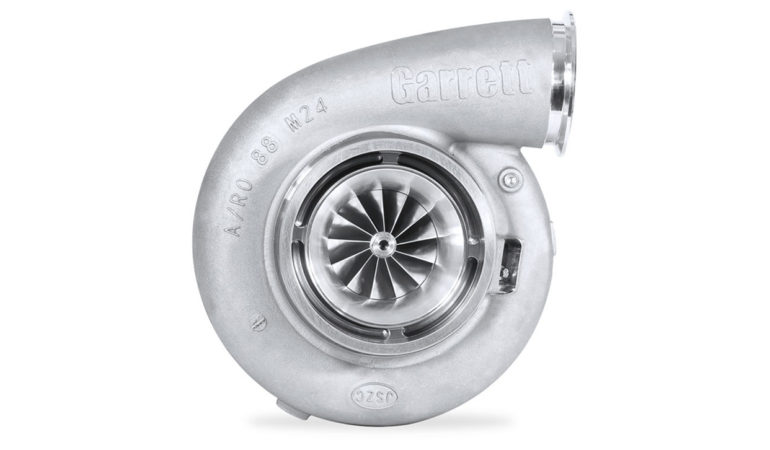

About Garrett Performance GTX Series Turbochargers
Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
