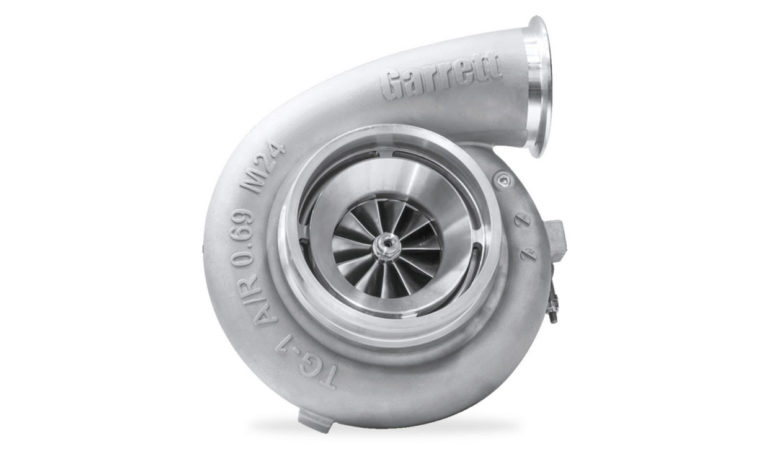

GTX Series GTX4508R

GTX Series GTX4508R: the most powerful Large-Frame Turbocharger

Information

  • Horsepower: 700 - 120
  • Displacement: 2.0L - 8.0L
  • Features original gtx comp wheel aerodynamics
  • Supercore and turbine kit sold separately
  • Available only with divided turbine housings
  • V-band compressor outlet configuration
  • 80mm compressor inducer
  • Turbo option for LS engine applications
  • Supercore part number: 880270-5001s
  • ☎ Call: +39 071715693
  • ✉ Send e-mail: info@saito.it
  • 🌏 Worldwide delivery!

Description

GTX4508R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 700-1250 Disp: 2.0L-8.0L 80mm 108mm 55 0.69 87mm 80mm 85
Supercore PN
Standard Rotation 800270-5001S
Turbine Kits: GTX45 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT|GTX 4508 Supercores 757707-0005 1.01 T4 V-Band Free Float Y
757707-0006 1.15 T4 V-Band Free Float Y
757707-0007 1.28 T4 V-Band Free Float Y
757707-0008 1.44 T4 V-Band Free Float Y



About Garrett Performance GTX Series Turbochargers

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
